TGW-ParkSFW-TS is a native ticketing and access control software for the global market, designed specifically for modern turnstile systems. It enables streamlined entry and exit management, serving as the intelligent core of various facilities and is widely used in parking lots, theme parks, exhibition halls, gated communities, and sports stadiums.
| Програм хангамжийн нэр | TigerWong Ticket Management System |
| System Architecture | Classic C/S (Client/Server) architecture, supporting some B/S (Browser/Server) functionality for data querying. |
| Development Languages | Server-side: C++/Java; Client-side: C#/.NET Framework 4.5+ or Qt 5.9+. |
| Database | Embedded MySQL 5.7.xx, also compatible with MySQL 8.0 and MariaDB 10.3+. Supports external independent database deployment. |
| Deployment Method | Purely local deployment. Both software and database are installed on the client’s local server; core functions operate normally without an external network connection. |
| Server OS | Windows: Windows Server 2012 R2, 2016, 2019; Windows 10/11 (for testing).
Linux: CentOS 7.4+, Ubuntu 18.04+ (specific installation package required). |
| Client OS | Windows 10, Windows 11 (64-bit Professional or Enterprise edition recommended). |
| Gate Control Protocol | Serial Communication: Standard RS-232/RS-485, supports custom instruction sets.
Network Communication: TCP/IP (Socket) protocol, supports integration with multiple gate controller brands. I/O Signals: Supports dry contact signal input (vehicle detectors, buttons, etc.) and output (controlling gate opening and closing). |
| License Plate Recognition Integration | Integration Mode: Supports SDK calls (mainstream brand cameras) and RTSP video stream analysis (general mode).
Pre-integrated Brands: Mainstream security brand cameras such as Hikvision, Dahua Technology, and Uniview Technologies. Recognition Trigger: Supports video stream virtual coil triggering or ground loop coil hardware triggering. |
| Техникийн дэмжлэг | 7X24 цагийн онлайн техникийн дэмжлэг үзүүлэх |
| Payment Devices | Barcode Scanner: Supports universal barcode scanners with USB interface, automatically recognizes QR codes. |
1. What types of ticket verification does the software support?
This software fully supports verification of various electronic and physical credentials, including QR codes, barcodes, NFC/RFID cards, ID cards, and facial recognition, meeting the entry requirements of different scenarios.
2. Will ticket verification still work if the network is interrupted?
Yes. The software has an offline ticket verification mode.
3. How to prevent a single ticket from being used by multiple people or repeatedly?
The system uses a real-time verification mechanism. Once a ticket is successfully verified, the system will immediately mark it as “used” in the database. Subsequent verification requests for the same ticket will be rejected by the system, triggering an alarm.
4. What if the gate doesn’t open during ticket verification?
First, check the software interface: If it displays “Verification successful” but the gate doesn’t move, it may be a malfunction of the gate itself or a communication line problem.
If it displays “Invalid ticket,” please check if the ticket date and session are correct.
If the problem persists, please contact technical personnel to check the hardware connection.
5. What data can administrators view in the backend?

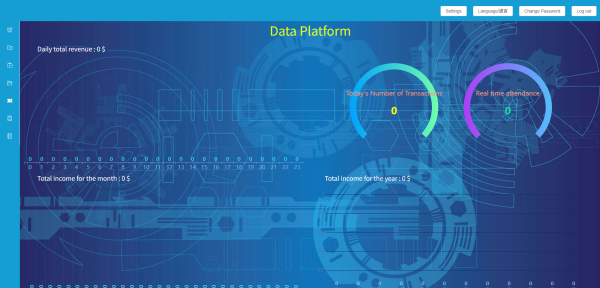

Management personnel can view the number of visitors entering the park, the number of people in the park, and the real-time ticket verification status of each channel in real time. The backend can also generate detailed reports, including visitor flow analysis (by time period/date), ticket type redemption statistics, channel utilization rates, etc., providing data support for operational decisions.
6. What if a visitor’s phone is out of battery and cannot display the QR code?
In this case, on-site staff can use the software’s “fuzzy search” function to find the purchase record and manually verify it before allowing entry.
7. How fast is the system’s ticket verification?
The average response time for a single ticket verification (from scanning/recognition to gate response) is less than 200 milliseconds.
8. How does the system handle abnormal tickets (such as counterfeit tickets or expired tickets)?
When an abnormal ticket is verified, the system will immediately provide a clear error message on the software interface.
| Програм хангамжийн нэр | TigerWong Ticket Management System |
| System Architecture | Classic C/S (Client/Server) architecture, supporting some B/S (Browser/Server) functionality for data querying. |
| Development Languages | Server-side: C++/Java; Client-side: C#/.NET Framework 4.5+ or Qt 5.9+. |
| Database | Embedded MySQL 5.7.xx, also compatible with MySQL 8.0 and MariaDB 10.3+. Supports external independent database deployment. |
| Deployment Method | Purely local deployment. Both software and database are installed on the client’s local server; core functions operate normally without an external network connection. |
| Server OS | Windows: Windows Server 2012 R2, 2016, 2019; Windows 10/11 (for testing).
Linux: CentOS 7.4+, Ubuntu 18.04+ (specific installation package required). |
| Client OS | Windows 10, Windows 11 (64-bit Professional or Enterprise edition recommended). |
| Gate Control Protocol | Serial Communication: Standard RS-232/RS-485, supports custom instruction sets.
Network Communication: TCP/IP (Socket) protocol, supports integration with multiple gate controller brands. I/O Signals: Supports dry contact signal input (vehicle detectors, buttons, etc.) and output (controlling gate opening and closing). |
| License Plate Recognition Integration | Integration Mode: Supports SDK calls (mainstream brand cameras) and RTSP video stream analysis (general mode).
Pre-integrated Brands: Mainstream security brand cameras such as Hikvision, Dahua Technology, and Uniview Technologies. Recognition Trigger: Supports video stream virtual coil triggering or ground loop coil hardware triggering. |
| Техникийн дэмжлэг | 7X24 цагийн онлайн техникийн дэмжлэг үзүүлэх |
| Payment Devices | Barcode Scanner: Supports universal barcode scanners with USB interface, automatically recognizes QR codes. |
1. What types of ticket verification does the software support?
This software fully supports verification of various electronic and physical credentials, including QR codes, barcodes, NFC/RFID cards, ID cards, and facial recognition, meeting the entry requirements of different scenarios.
2. Will ticket verification still work if the network is interrupted?
Yes. The software has an offline ticket verification mode.
3. How to prevent a single ticket from being used by multiple people or repeatedly?
The system uses a real-time verification mechanism. Once a ticket is successfully verified, the system will immediately mark it as “used” in the database. Subsequent verification requests for the same ticket will be rejected by the system, triggering an alarm.
4. What if the gate doesn’t open during ticket verification?
First, check the software interface: If it displays “Verification successful” but the gate doesn’t move, it may be a malfunction of the gate itself or a communication line problem.
If it displays “Invalid ticket,” please check if the ticket date and session are correct.
If the problem persists, please contact technical personnel to check the hardware connection.
5. What data can administrators view in the backend?
Management personnel can view the number of visitors entering the park, the number of people in the park, and the real-time ticket verification status of each channel in real time. The backend can also generate detailed reports, including visitor flow analysis (by time period/date), ticket type redemption statistics, channel utilization rates, etc., providing data support for operational decisions.
6. What if a visitor’s phone is out of battery and cannot display the QR code?
In this case, on-site staff can use the software’s “fuzzy search” function to find the purchase record and manually verify it before allowing entry.
7. How fast is the system’s ticket verification?
The average response time for a single ticket verification (from scanning/recognition to gate response) is less than 200 milliseconds.
8. How does the system handle abnormal tickets (such as counterfeit tickets or expired tickets)?
When an abnormal ticket is verified, the system will immediately provide a clear error message on the software interface.
