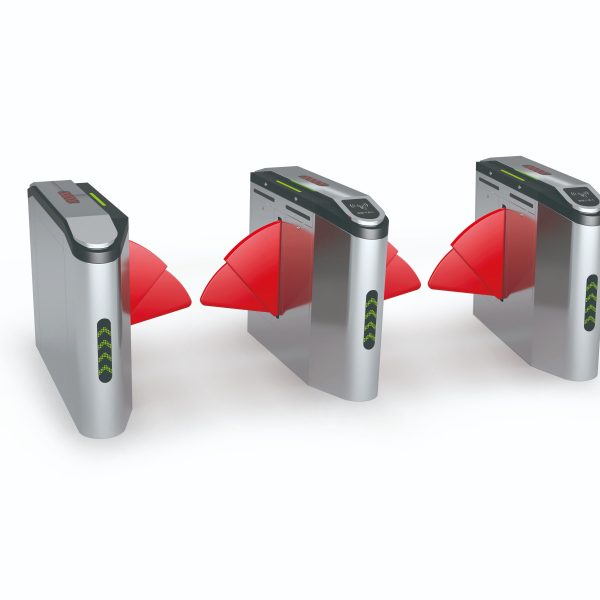

TGW-HC-WT0027, with its unique arched streamlined design, redefines the aesthetic standards of access management. While inheriting the core functions of the wing gate, which provides efficiency and safety, it also emphasizes spatial interaction with the environment. It is ideally suited for high-end office buildings, star-rated hotels, boutique commercial centers, and other places that demand excellence in spatial style and user experience. While achieving precise access management, it also becomes a landmark facility that enhances the quality of the environment.
| Product Model | TGW-HC-WT027 |
| Material Of Construction | SS-304 |
| Dimension | 1400mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 50Kgs. |
| Wing Width | 250mm |
| Passage Width | ≤900mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this flap gate?
Our standard flap gate size is 1400mm (length) x 300mm (width) x 980mm (height) and weighs about 50kg. Customized size can be made upon request.
2. What materials are used for this flap gate?
The flap gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this flap gate suitable for outdoor use?
Yes, our flap gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this flap gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this flap gate support two-way access?
Yes, this flap gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the flap gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-HC-WT027 |
| Material Of Construction | SS-304 |
| Dimension | 1400mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 50Kgs. |
| Wing Width | 250mm |
| Passage Width | ≤900mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this flap gate?
Our standard flap gate size is 1400mm (length) x 300mm (width) x 980mm (height) and weighs about 50kg. Customized size can be made upon request.
2. What materials are used for this flap gate?
The flap gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this flap gate suitable for outdoor use?
Yes, our flap gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this flap gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this flap gate support two-way access?
Yes, this flap gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the flap gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
