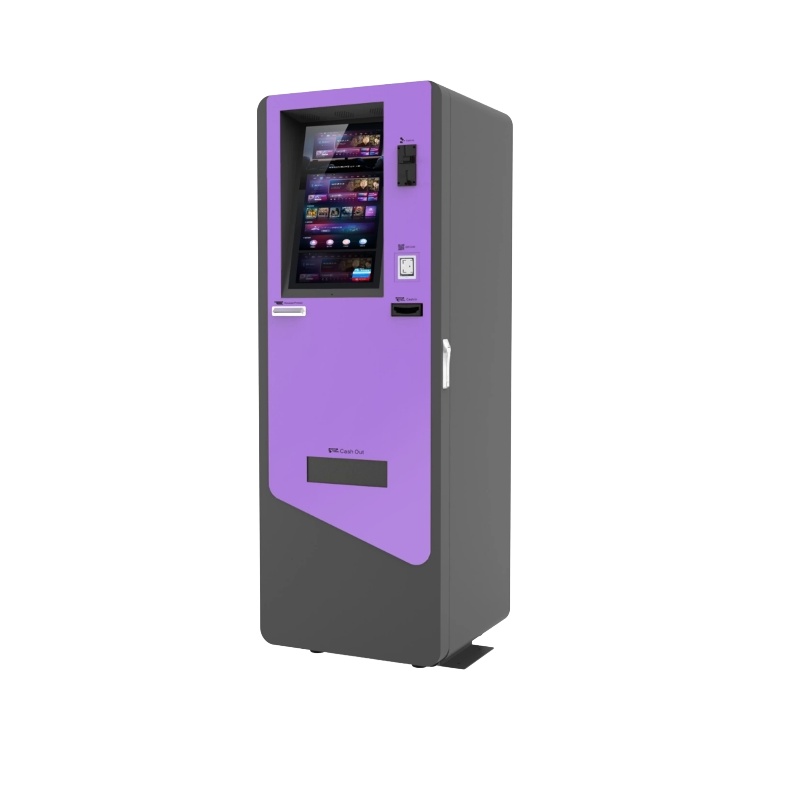

Parking payment system - TGW-AP103P

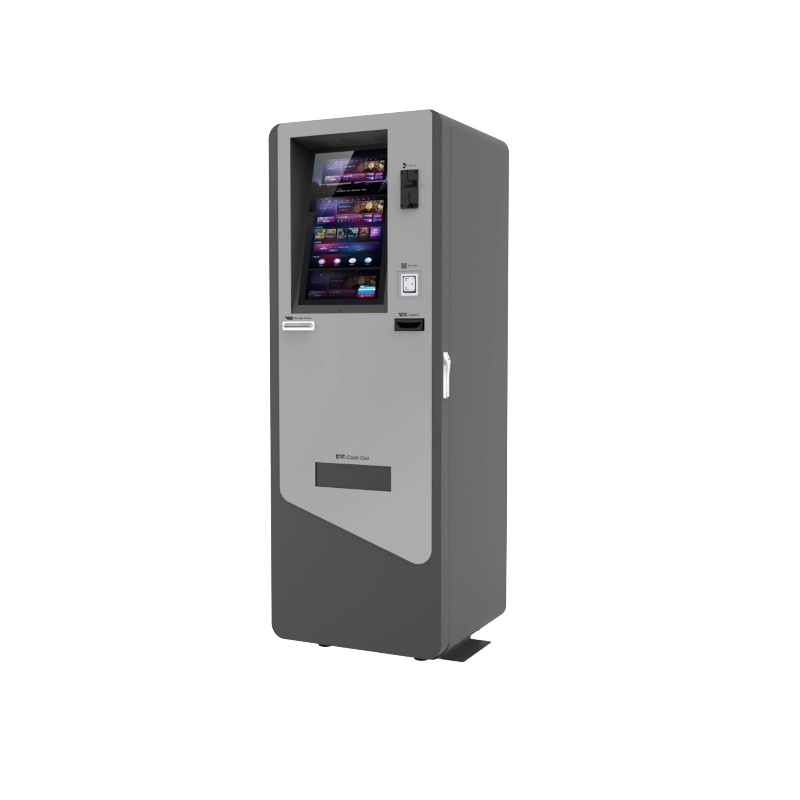

Parking payment system - TGW-AP103P - Image 2

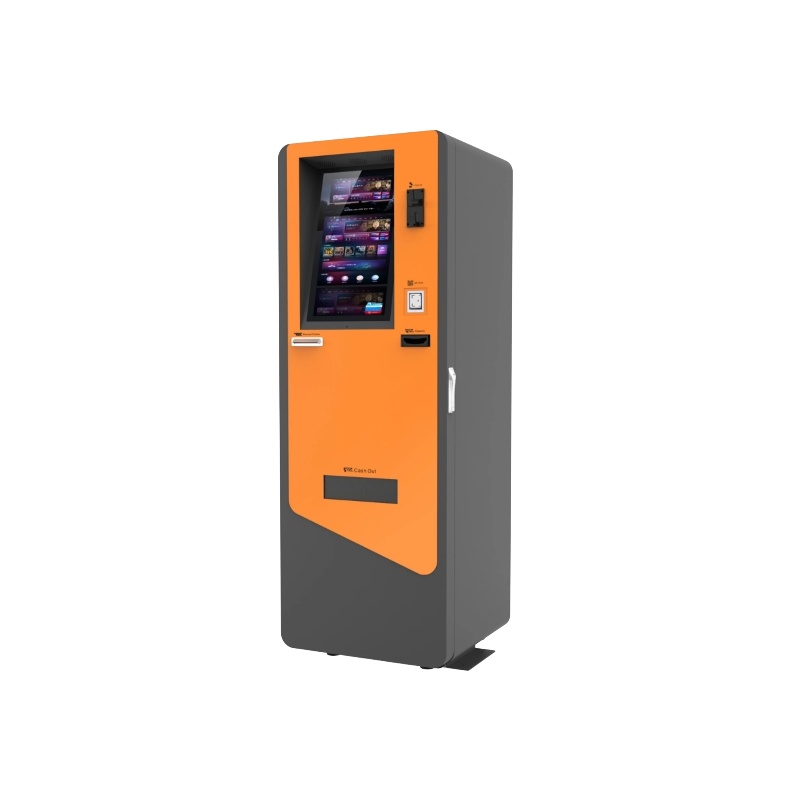

Parking payment system - TGW-AP103P - Image 3

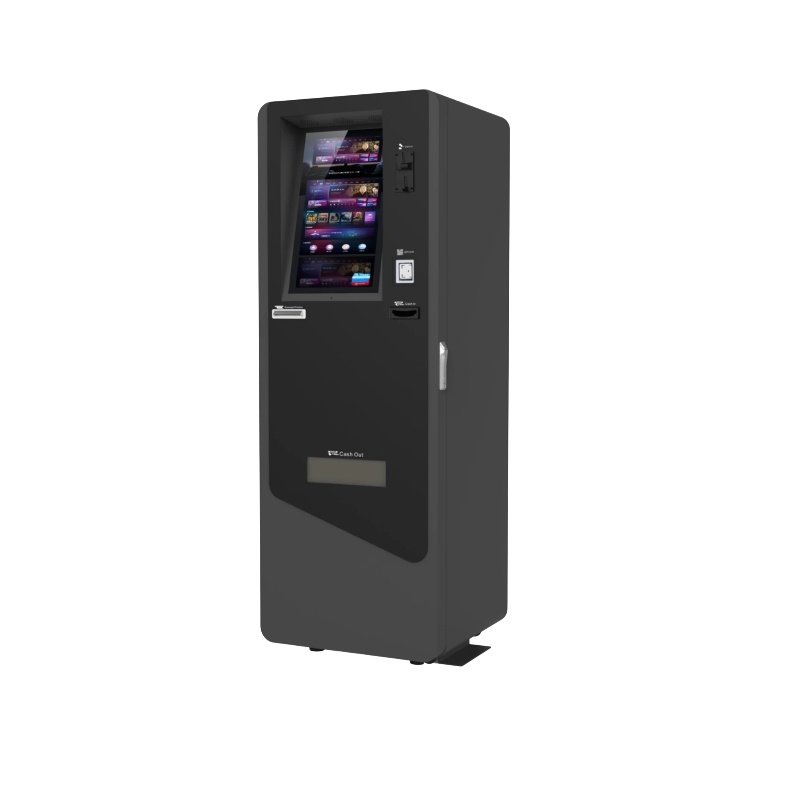

Parking payment system - TGW-AP103P - Image 4

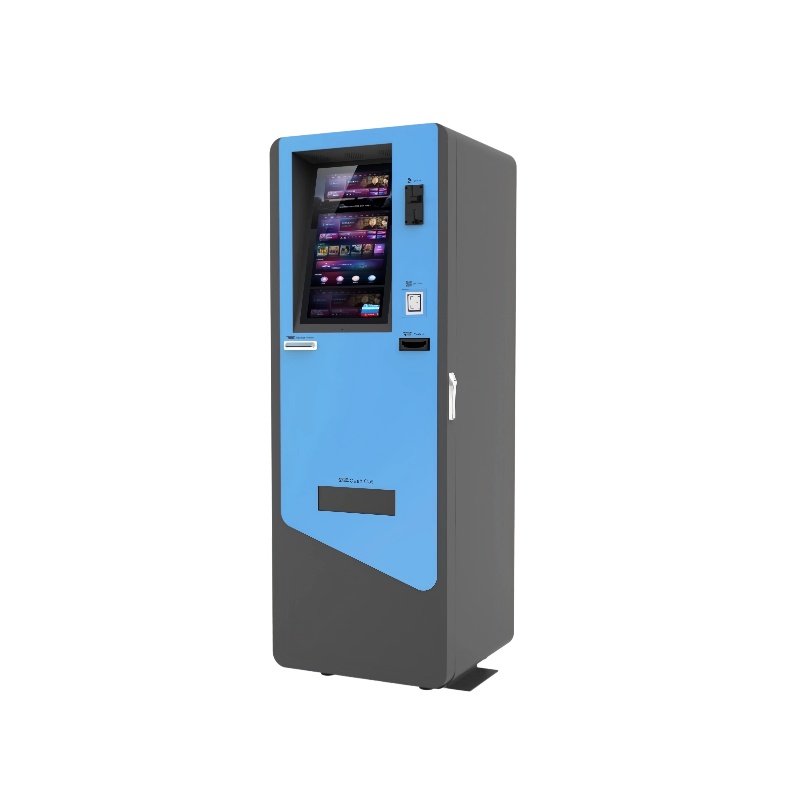

Parking payment system - TGW-AP103P - Image 5

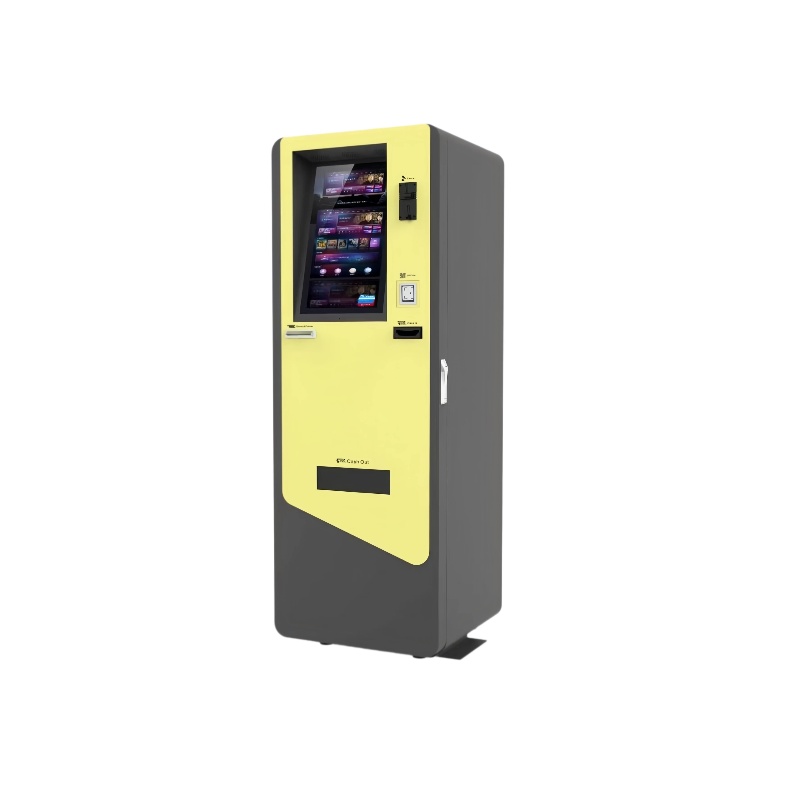

Parking payment system - TGW-AP103P - Image 6

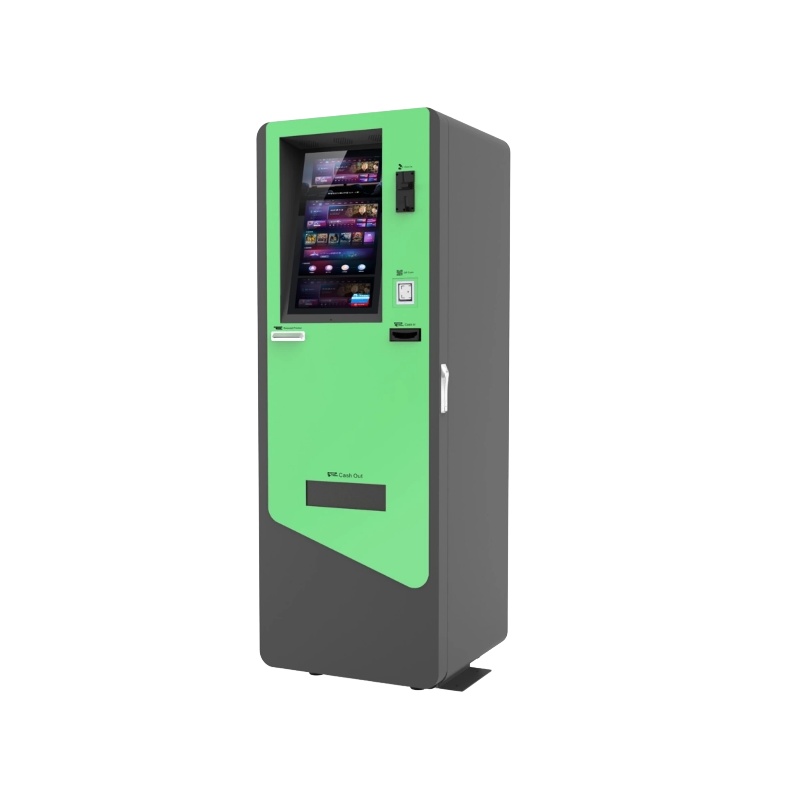

Parking payment system - TGW-AP103P - Image 7

Parking payment system – TGW-AP103P

,

Facebook Youtube Twitter Instagram Vimeo Linkedin

The TGW-AP103P is a self-service payment terminal designed specifically for parking management systems. It supports payments via bank cards, QR codes, and cash, and features change-dispensing and receipt-printing capabilities. Equipped with an 18.5-inch touchscreen, it offers a user-friendly interface. Ideal for large parking lots, shopping malls, and commercial buildings, the terminal enables fully unattended fee collection and accelerates vehicle exit times.

Chat Now
message
Email
Chat Now
message
Email
Product Categories
Parking Management System
ANPR/ALPR Parking System
Barrier Boom
Parking Guidance System
Parking Payment System
RFID Card Parking System
Ticket Parking System
UHF&Bluetooth Parking System
Turnstile Gate
Drop Arm Gate
Flap Wings Turnstile Gate
Full Height Turnstile
Half Height Turnstile
Sliding Turnstile Gate
Speed Turnstile Gate
Swing Turnstile Gate
Tripod Turnstile Gate
Turnstile Gate for Kindergarten
Access Control
Software
search

New Products

ANPR/ALPR Parking System – TGW-LDV4
ANPR/ALPR Parking System – TGW-LDV4
Read More
Access Control - TGW-Q340
Access Control - TGW-Q340
Read More
ANPR/ALPR Parking - TGW-LIV0
ANPR/ALPR Parking - TGW-LIV0
Read More
Automatic Number Plate Recognition System Hardware ParkingCamera - TGW-LRA3
Automatic Number Plate Recognition System Hardware ParkingCamera - TGW-LRA3
Read More
Tiger-TP750X-3
Ticket Parking System - Tiger-TP750X
Tiger-TP750E-1
Ticket Parking System - Tiger-TP750E
TGW-AP103P-2
Parking payment system - TGW-AP103P
Tiger-PB920S-1
Barrier Boom - Tiger-PB920S
Product Model TGW-AP103
System Android board 5.0
Android Board CPU:Rock chip RK3288, quad-core ARM Cortex A17 1.8 GHz RAM:DDR3 2G
Screen 18.5 inch capactitive touch screen
Work Temperature -25℃~70℃
Work Humidity ≤85%
UPS UPS maintains the industrial control host to work normally for

about 30 minutes.
Communication Mode TCP/IP
Network RJ45,100M
Voltage 220 v /110V±10%
Shell Material Cold-rolled steel plate,material thickness above 1.5mm (standard) can be customized
Interface LVDS interface

EDP interface

RJ45 interface

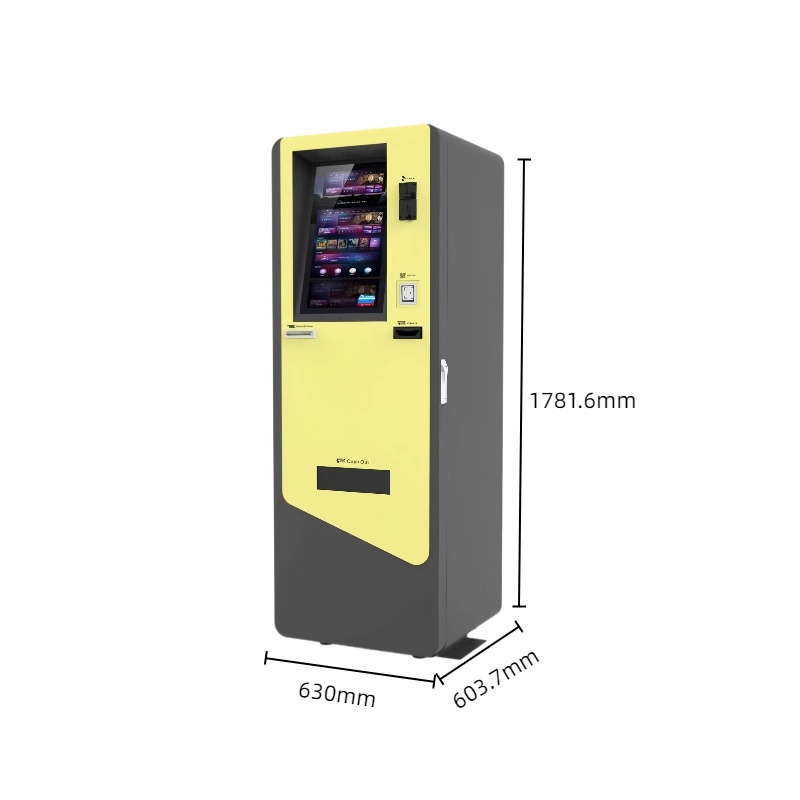

Appearance Size 1781.6*630*603.7mm(H*L*W)
Coin Receiver Identification accuracy:95%

Identification speed:0.6s

Shell material:PC plastic
Coin Change Coin capacity:About 500 pieces

Applicable coin size:(diameter) 20mm-30mm,(Thickness) 1.6mm-3.3mm
Banknote Receiver Operation Environment:Operation Temperature：0℃~55℃

Storage Temperature：-20℃~70℃
Banknote Change Cash out speed:Up to 10 sheets per second

Cash drawer capacity:About 700 sheets

(differs according to the thickness of the banknote)
Printer Line thermal printing
Infrared Human Body Sensor Induction distance: limited to 5M, recommended 0-3.5M

  1. Support entering license plate number, scanning QR code and swiping VIP card to check payment amount.
  2. Supports card and cash payment for parking fees, as well as cash change.
  3. 24-hour operation: no human supervision required, all-weather service.
  4. Data records: store transaction records, parking duration, etc., and support report export.

  1. Check the fee: If it is a license plate recognition system, users can check the parking fee by entering the license plate number. If it is a paper ticket system, users can check the parking fee by scanning the QR code on the paper ticket. If it is a card swipe system, users can check the parking fee by swiping the parking card.
  2. Payment: User can pay the fee by cash or card. After successful payment, a receipt can be printed.

Flow-Chart03

  1. What is the TGW-AP103P Self-service Payment Machine?
    It is an unattended terminal designed for parking lot management systems. It integrates payment processing, advertising display, and self-service functions to automate vehicle exit and reduce staffing needs.
  2. What are the main functions of this payment kiosk?
    It supports bank card payments, QR code scanning, cash and banknote acceptance, coin change, receipt printing, LCD touch interaction, and IC/ID card reading/writing.
  3. Where is this machine typically applied?
    It is specifically designed for large parking lot management systems, helping to increase vehicle exit traffic and improve operational efficiency.
  4. Does this machine support unattended operation?
    Yes. It is designed for self-service, enabling unattended intelligent charging when connected to a data network and system backstage.
  5. What are the dimensions and weight of the machine?
    The appearance size is 1781.6mm (H) * 630mm (D) * 603.7mm (W).
  6. What materials are used for the machine shell?
    The machine shell is made of cold-rolled steel plate with a standard material thickness of above 1.5mm. Customization is available.
  7. What operating system and processor does it use?
    It runs on Android Board 5.0, powered by a Rockchip RK3288 quad-core ARM Cortex A17 1.8 GHz CPU with 2GB DDR3 RAM.
  8. What is the screen size and type?
    It features an 18.5-inch capacitive touch screen for easy user interaction.
  9. What are the payment and identification options available?
    It supports coin receiving, coin change, banknote receiving, banknote change, bank card payment, QR code payment, and IC/ID card reading.
  10. What is the coin capacity and change capability?
    The coin change capacity is about 500 pieces. It handles coins with a diameter of 20mm-30mm and a thickness of 1.6mm-3.3mm.
  11. What is the banknote capacity and cash-out speed?
    The cash drawer capacity is about 700 sheets (depending on banknote thickness), with a cash-out speed of up to 10 sheets per second.
  12. How does the printer work?
    It uses line thermal printing technology to provide receipts.
  13. 13. What are the communication and network interfaces?
    It supports TCP/IP communication, RJ45 (100M) network interface, and includes LVDS and EDP interfaces.
Product Parameters
Product Model TGW-AP103
System Android board 5.0
Android Board CPU:Rock chip RK3288, quad-core ARM Cortex A17 1.8 GHz RAM:DDR3 2G
Screen 18.5 inch capactitive touch screen
Work Temperature -25℃~70℃
Work Humidity ≤85%
UPS UPS maintains the industrial control host to work normally for

about 30 minutes.
Communication Mode TCP/IP
Network RJ45,100M
Voltage 220 v /110V±10%
Shell Material Cold-rolled steel plate,material thickness above 1.5mm (standard) can be customized
Interface LVDS interface

EDP interface

RJ45 interface
Appearance Size 1781.6*630*603.7mm(H*L*W)
Coin Receiver Identification accuracy:95%

Identification speed:0.6s

Shell material:PC plastic
Coin Change Coin capacity:About 500 pieces

Applicable coin size:(diameter) 20mm-30mm,(Thickness) 1.6mm-3.3mm
Banknote Receiver Operation Environment:Operation Temperature：0℃~55℃

Storage Temperature：-20℃~70℃
Banknote Change Cash out speed:Up to 10 sheets per second

Cash drawer capacity:About 700 sheets

(differs according to the thickness of the banknote)
Printer Line thermal printing
Infrared Human Body Sensor Induction distance: limited to 5M, recommended 0-3.5M

Features
  1. Support entering license plate number, scanning QR code and swiping VIP card to check payment amount.
  2. Supports card and cash payment for parking fees, as well as cash change.
  3. 24-hour operation: no human supervision required, all-weather service.
  4. Data records: store transaction records, parking duration, etc., and support report export.

working process
  1. Check the fee: If it is a license plate recognition system, users can check the parking fee by entering the license plate number. If it is a paper ticket system, users can check the parking fee by scanning the QR code on the paper ticket. If it is a card swipe system, users can check the parking fee by swiping the parking card.
  2. Payment: User can pay the fee by cash or card. After successful payment, a receipt can be printed.

Flow-Chart03

FAQ
  1. What is the TGW-AP103P Self-service Payment Machine?
    It is an unattended terminal designed for parking lot management systems. It integrates payment processing, advertising display, and self-service functions to automate vehicle exit and reduce staffing needs.
  2. What are the main functions of this payment kiosk?
    It supports bank card payments, QR code scanning, cash and banknote acceptance, coin change, receipt printing, LCD touch interaction, and IC/ID card reading/writing.
  3. Where is this machine typically applied?
    It is specifically designed for large parking lot management systems, helping to increase vehicle exit traffic and improve operational efficiency.
  4. Does this machine support unattended operation?
    Yes. It is designed for self-service, enabling unattended intelligent charging when connected to a data network and system backstage.
  5. What are the dimensions and weight of the machine?
    The appearance size is 1781.6mm (H) * 630mm (D) * 603.7mm (W).
  6. What materials are used for the machine shell?
    The machine shell is made of cold-rolled steel plate with a standard material thickness of above 1.5mm. Customization is available.
  7. What operating system and processor does it use?
    It runs on Android Board 5.0, powered by a Rockchip RK3288 quad-core ARM Cortex A17 1.8 GHz CPU with 2GB DDR3 RAM.
  8. What is the screen size and type?
    It features an 18.5-inch capacitive touch screen for easy user interaction.
  9. What are the payment and identification options available?
    It supports coin receiving, coin change, banknote receiving, banknote change, bank card payment, QR code payment, and IC/ID card reading.
  10. What is the coin capacity and change capability?
    The coin change capacity is about 500 pieces. It handles coins with a diameter of 20mm-30mm and a thickness of 1.6mm-3.3mm.
  11. What is the banknote capacity and cash-out speed?
    The cash drawer capacity is about 700 sheets (depending on banknote thickness), with a cash-out speed of up to 10 sheets per second.
  12. How does the printer work?
    It uses line thermal printing technology to provide receipts.
  13. 13. What are the communication and network interfaces?
    It supports TCP/IP communication, RJ45 (100M) network interface, and includes LVDS and EDP interfaces.
