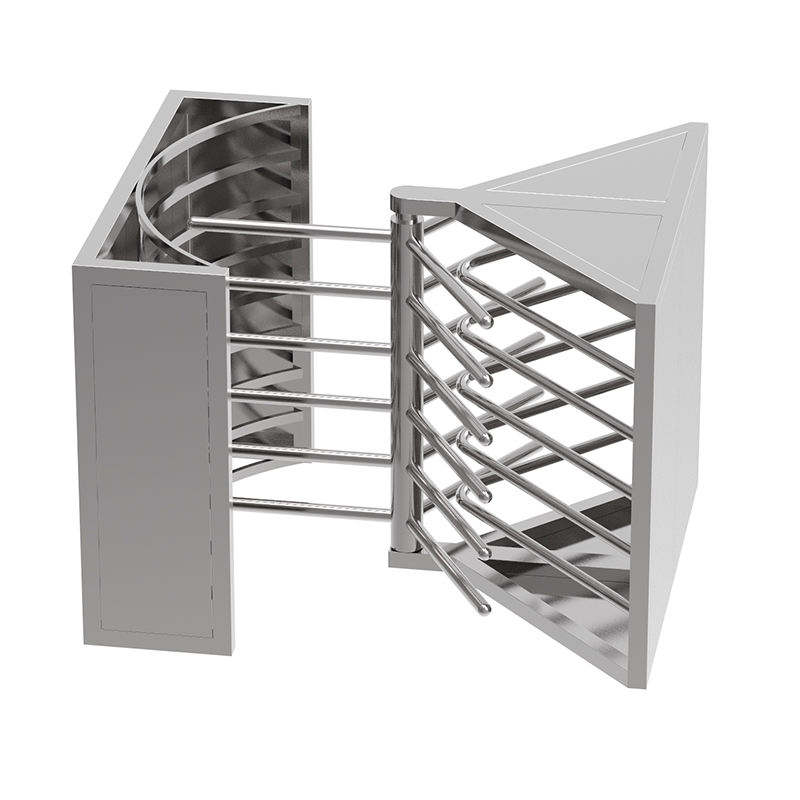

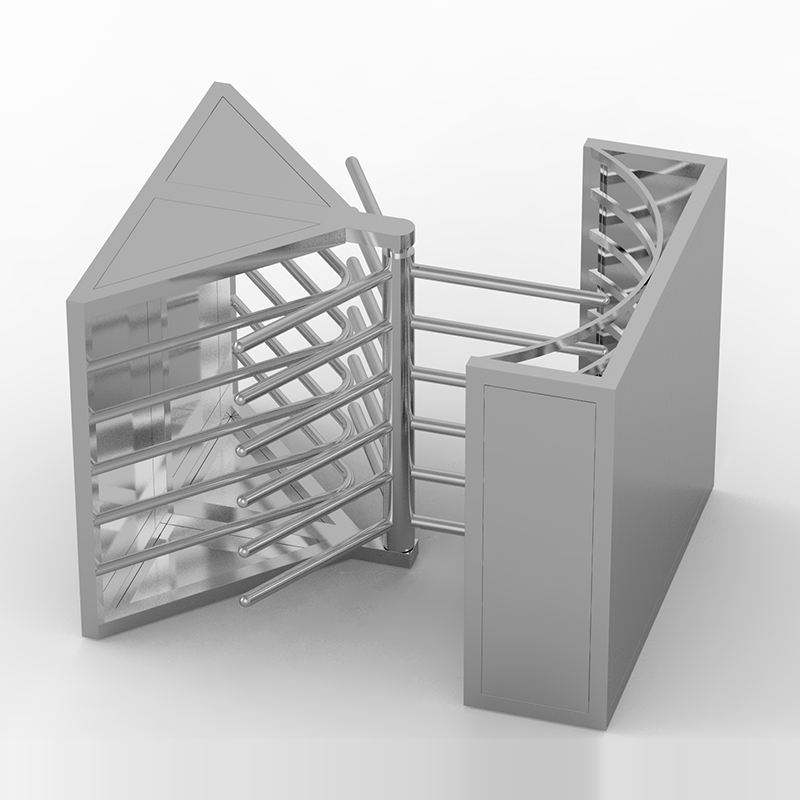

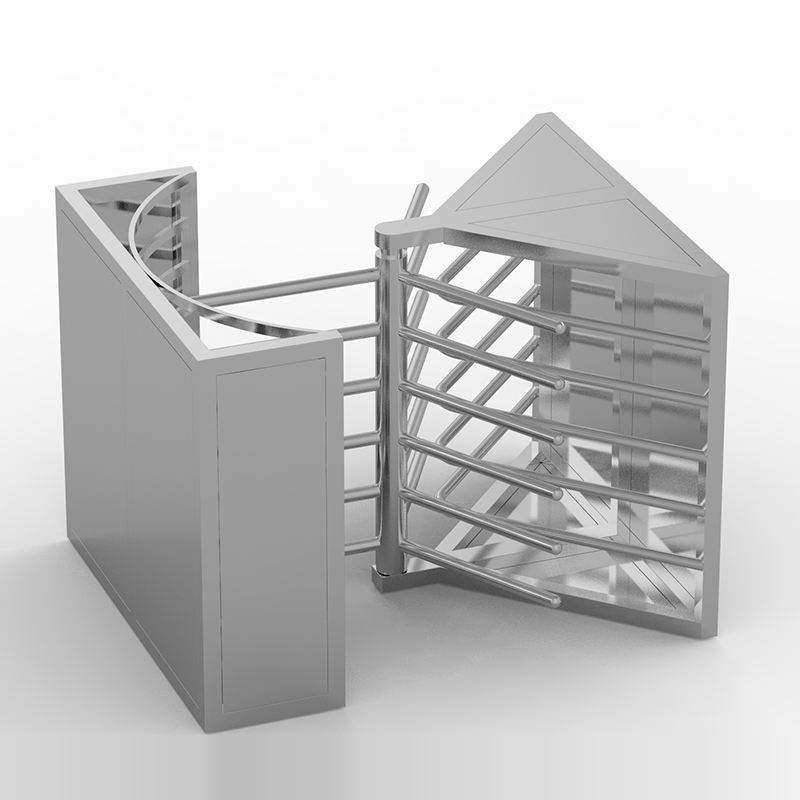

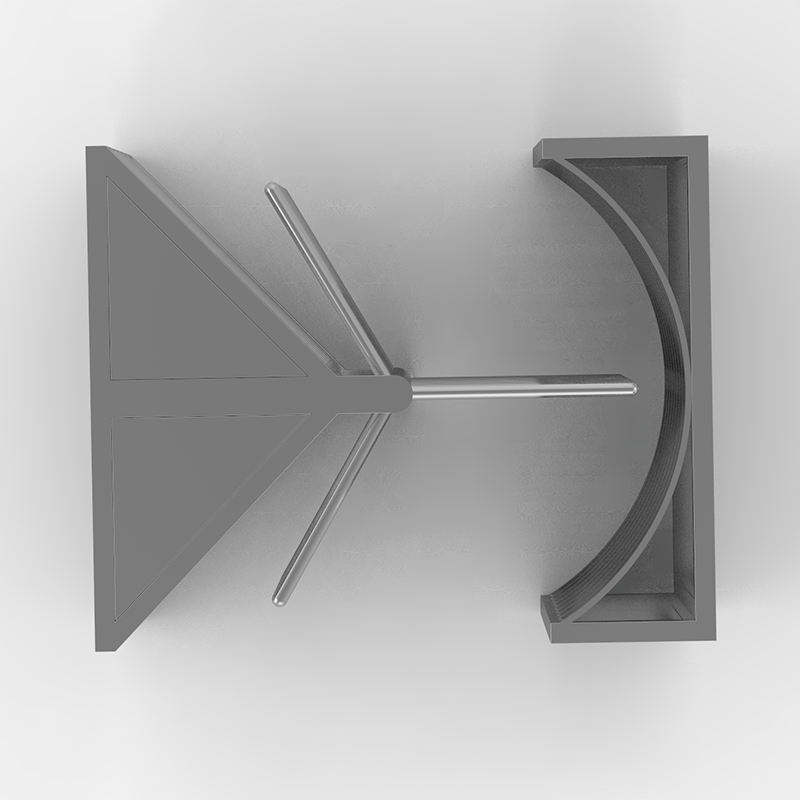

The TGW-HH003 is an intelligent semi-high gate that serves not only as a physical barrier but also as a smart gateway to modern venues. With its sleek design and elegant access logic, it effectively manages pedestrian flow while significantly enhancing the technological feel and user experience at entrances and exits. Whether it’s a precise welcome in a corporate lobby or a quick commute in a subway station, it seamlessly integrates into the scene, providing a safe, efficient, and dignified traffic management solution for every authorized passage.
| Product Model | TGW-HH003 |
| Material Of Construction | SS-304 |
| Dimension | 1500mm (L) X 1350mm (W) X 1400mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 80Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Single |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this half height turnstile gate?

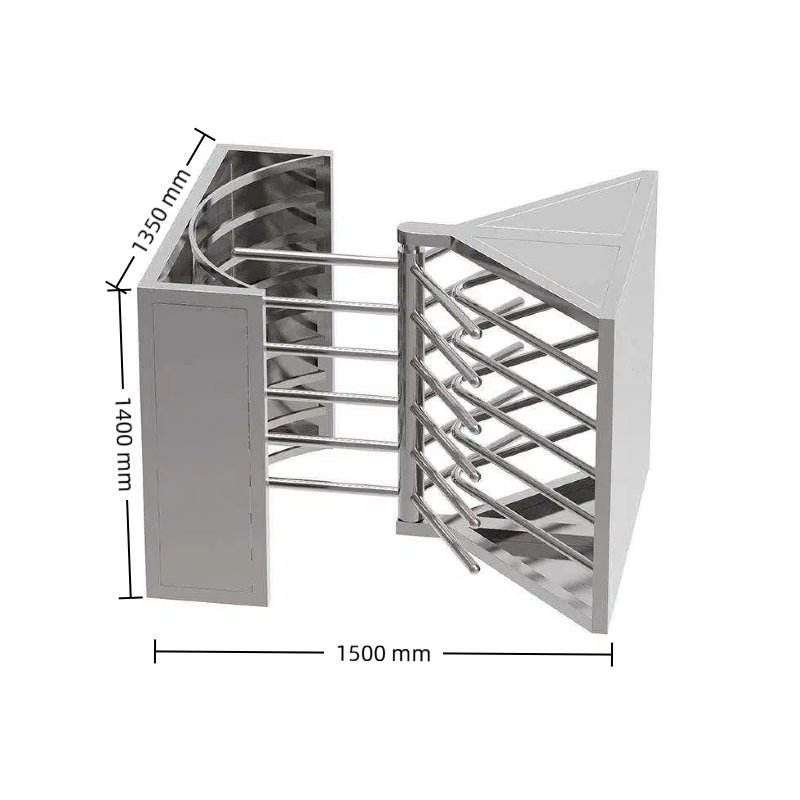

Our standard half height turnstile gate size is 1500mm (length) x 1350mm (width) x 1400mm (height) and weighs about 80kg. Customized size can be made upon request.
2. What materials are used for this half height turnstile gate?
The half height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this half height turnstile gate suitable for outdoor use?
Yes, our half height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this half height turnstile gate work?

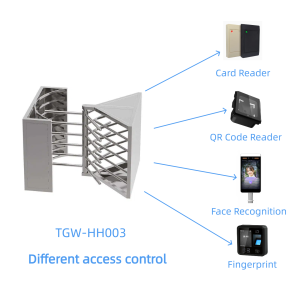

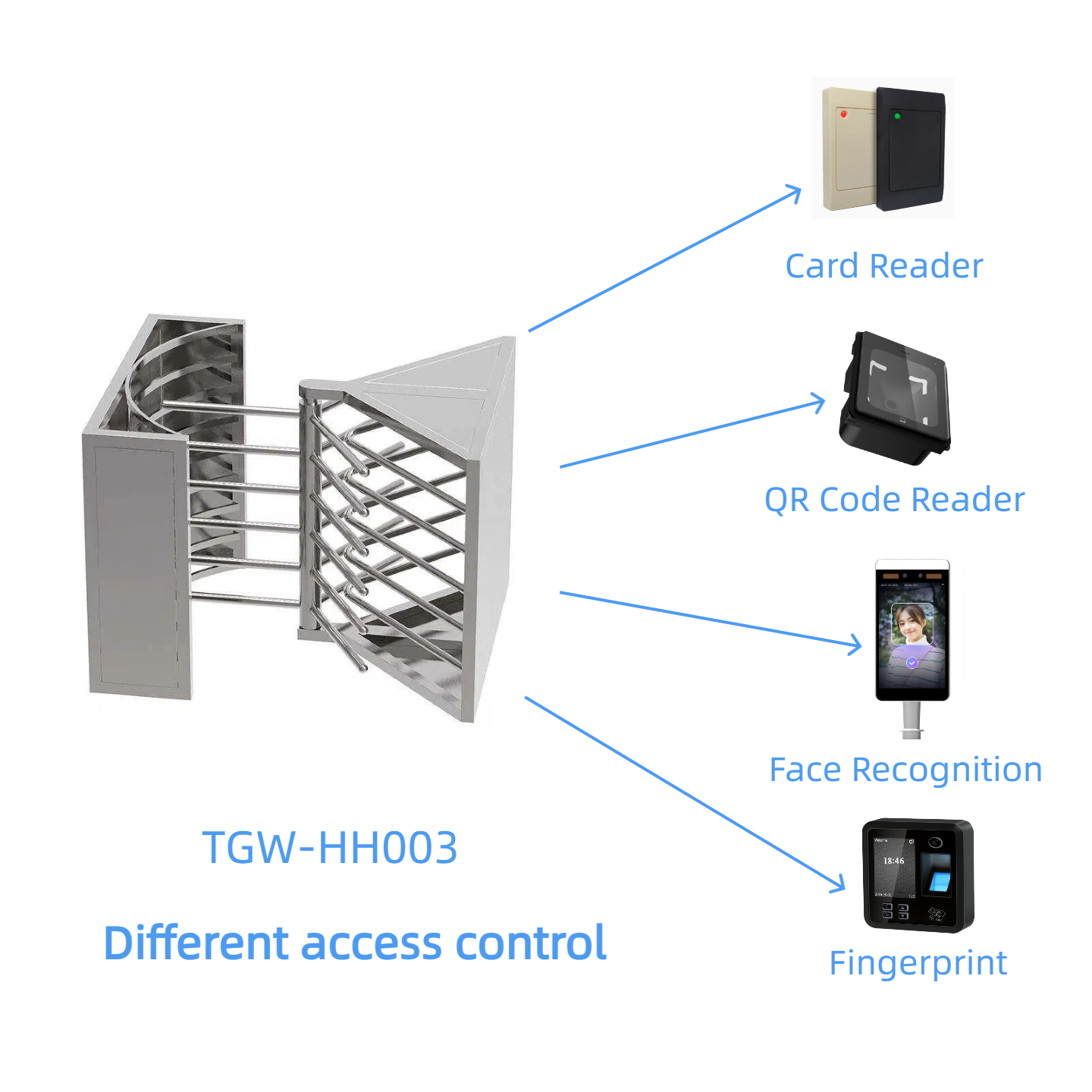

Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this half height turnstile gate support two-way access?
Yes, this half height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.
7. Can the half height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-HH003 |
| Material Of Construction | SS-304 |
| Dimension | 1500mm (L) X 1350mm (W) X 1400mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 80Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Single |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this half height turnstile gate?
Our standard half height turnstile gate size is 1500mm (length) x 1350mm (width) x 1400mm (height) and weighs about 80kg. Customized size can be made upon request.
2. What materials are used for this half height turnstile gate?
The half height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this half height turnstile gate suitable for outdoor use?
Yes, our half height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this half height turnstile gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this half height turnstile gate support two-way access?
Yes, this half height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.
7. Can the half height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
