An outdoor full height turnstile is not just a tall gate at the entrance. For a factory or construction site, it controls who can enter, when they enter, and whether the record is reliable. You may need it for workers, visitors, subcontractors, delivery staff, or night-shift teams.
The concerns are usually practical: rain, dust, mud, unstable power, rough use, and people trying to follow someone else through. A good full height turnstile gate should handle all of that without becoming a daily headache.
Why Do Factories and Construction Sites Need an Outdoor Full Height Turnstile?
Factories and job sites often have open perimeters, busy entrances, and mixed personnel. A simple card reader on a door may work in an office, but it is not enough when the entrance is exposed and people flow in groups.
Controlling Unauthorized Entry
A construction site turnstile helps stop casual entry by people who should not be inside. This matters because one unauthorized visitor can create safety, theft, or liability problems. A factory access control point has similar pressure, especially near warehouses, workshops, and restricted production areas.
A high security turnstile creates a real physical barrier. Unlike waist-high gates, a full height design makes climbing and crossing harder. TigerWong TGW-FH001 uses a fully enclosed steel structure, with a gate pole height usually above 2 meters, designed for anti-climbing and anti-tailing applications.
Linking Access with Attendance
For many sites, the turnstile is also part of attendance control. Workers can enter by RFID card, face recognition, fingerprint, QR code, barcode, or button. This makes a construction site access control system more useful than a paper sign-in sheet. Nobody likes chasing missing attendance records on a rainy Monday morning.
Is the Installation Site Ready for a Full Height Turnstile?
Before buying an outdoor access control gate, check the ground first. Many problems start from poor foundation work, not from the machine itself.
Foundation and Space
TGW-FH001 measures 1500mm × 1350mm × 2300mm, with a 550mm passage width and about 150kg net weight. The base should be flat, firm, and able to take anchor bolts. If the ground is soft, uneven, or cracked, the rotating mechanism may wear faster.
You also need space for queueing. A single lane full height turnstile works well for a small site entrance, but a large factory shift change may need more than one lane. TGW-FH001 supports bi-directional passage, so you can plan one-way or two-way access based on site traffic.
Drainage Planning
Do not install the gate at the lowest point of the entrance. Rainwater, mud, and sand can collect around the base. Good turnstile drainage planning means a slightly raised foundation, sealed cable channels, and clean water runoff. It sounds boring, but drainage is often what separates a neat installation from constant service calls.
What Weather Conditions Should You Check Before Installation?
An outdoor security turnstile faces sun, rain, dust, humidity, and temperature swings. The product must match the local environment, especially for coastal plants, dusty construction roads, or open industrial yards.

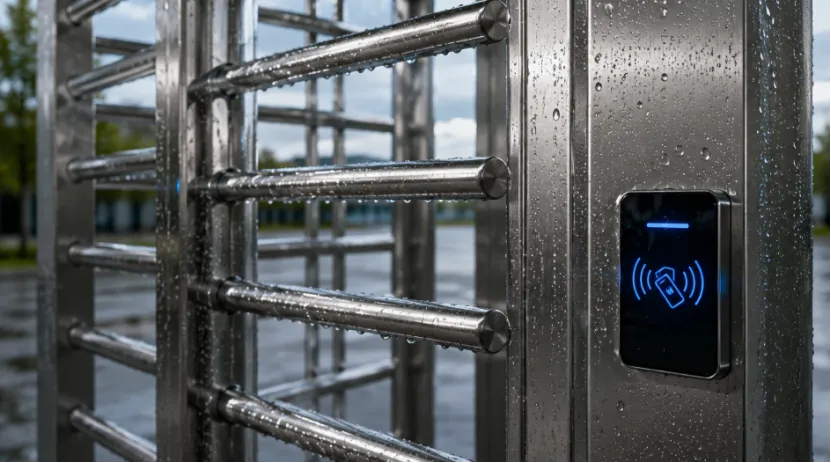

IP Rating and Stainless Steel
An IP65 full height turnstile is suitable for outdoor use because it resists dust and water spray. TGW-FH001 has IP65 protection and SS-304 stainless steel construction, making it a practical weatherproof full height turnstile for many harsh entrances. Its material thickness is 1.5mm, and the main body is built for long-term use.
A stainless steel turnstile also needs regular cleaning. Cement dust, salt, and mud should not sit on the surface for months. Even good stainless steel deserves a wipe-down now and then.
Temperature and Humidity
TGW-FH001 works from -25°C to +60°C, with relative humidity up to ≤90% RH. These numbers matter if the site has hot summers, cold mornings, or a humid rainy season. For an outdoor turnstile for harsh weather, this range is a key buying point.
What Power and Access Control Requirements Should Be Confirmed?
A turnstile is a mechanical gate plus an electronic control point. If power or communication is unstable, even a strong gate can become inconvenient.
Power Supply and Network
TGW-FH001 uses AC100–220V ±10% 50/60MHz power and TCP/IP communication. Before installation, check power stability, grounding, waterproof electrical boxes, and cable routing. Exposed cables at a construction entrance are a bad idea. They get kicked, pulled, wet, and sometimes buried by accident.
Access Methods
For a factory gate access control system, RFID cards are fast and simple. For a stricter entrance, a biometric full height turnstile with face recognition or fingerprint authentication can reduce card sharing. For visitors and subcontractors, a QR code turnstile for visitors is often easier to manage.
Why Choose TigerWong TGW-FH001 for Outdoor Factory and Construction Site Access?
TigerWong focuses on parking systems, turnstile gates, and access control products. Its product range covers parking management, ANPR/ALPR parking, barrier boom, payment systems, software, and pedestrian gates. For a buyer, this matters because entrance control is rarely one device only.
You may need turnstiles, software, access devices, and future expansion from the same technical direction. TigerWong TGW-FH001 fits projects where strong physical isolation, outdoor durability, and flexible identity checks are needed, especially at factories, construction sites, industrial parks, and high-security entrances.
Practical Security Features
TGW-FH001 is an SS-304 full height turnstile with three blades and 120-degree rotation. It uses solenoid locking, includes four sets of safety and logic sensors, and reaches 40 people per minute excluding card validation time. For a busy entrance, that speed is enough for many daily shifts, as long as the verification method is not too slow.
FAQ
Q1: What Should You Check Before Installing an Outdoor Full Height Turnstile?
A: Check foundation strength, drainage, power supply, cable protection, IP rating, stainless steel material, access method, passage width, and expected pedestrian flow.
Q2: Is an IP65 Turnstile Suitable for Outdoor Use?
A: Yes. An IP65 turnstile is built to resist dust and water spray, which makes it suitable for many outdoor factory and construction site entrances.
Q3: Why Is SS-304 Stainless Steel Important?
A: SS-304 stainless steel gives better resistance to rain, dust, humidity, and daily wear than ordinary coated steel. It also lowers long-term maintenance pressure.
Q4: Can a Full Height Turnstile Support Face Recognition and QR Code Access?
A: Yes. TGW-FH001 supports RFID card, face recognition, fingerprint authentication, QR code, barcode, and button access.
Q5: How Often Should an Outdoor Full Height Turnstile Be Maintained?
A: Clean it regularly, especially near dust, mud, or salt air. Check bolts, rotating parts, access devices, power, and network status on a fixed schedule.
