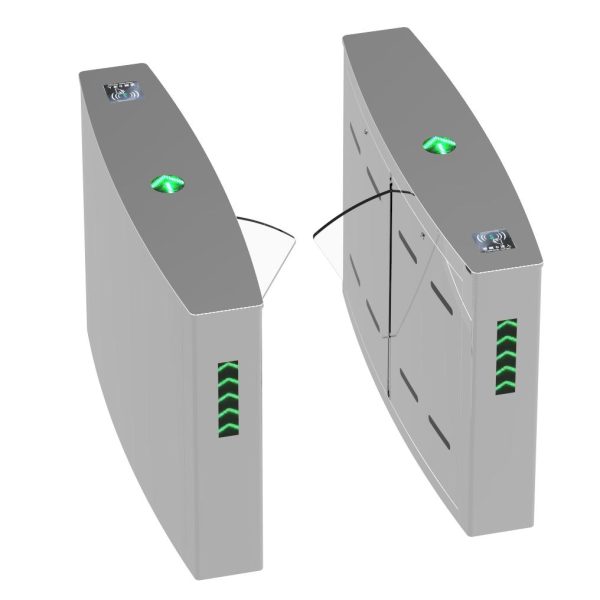

TGW-WT008 features a modern aesthetic with simple, flowing lines, integrating metallic textures with technological elements. It not only enhances the overall image of entrances and exits, but also provides an elegant and efficient passage experience for every employee and visitor through its stable and reliable performance. It is a wise choice for access management in high-end venues.
| Product Model | TGW-WT008 |
| Material Of Construction | SS-304 |
| Dimension | 1400mm (L) X 300mm (W) X 980mm (H) (customizable) |
| Drive | DC Brushed |
| Net Weight | 45Kgs. |
| Wing Width | 250mm |
| Passage Width | 550~600mm |
| Safety & Logic Sensors | 3 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this flap gate?
Our standard flap gate size is 1600mm (length) x 300mm (width) x 1000mm (height) and weighs about 45kg. Customized size can be made upon request.
2. What materials are used for this flap gate?
The flap gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this flap gate suitable for outdoor use?
Yes, our flap gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this flap gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this flap gate support two-way access?
Yes, this flap gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the flap gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
