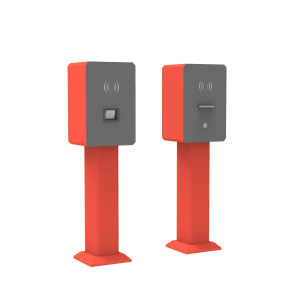

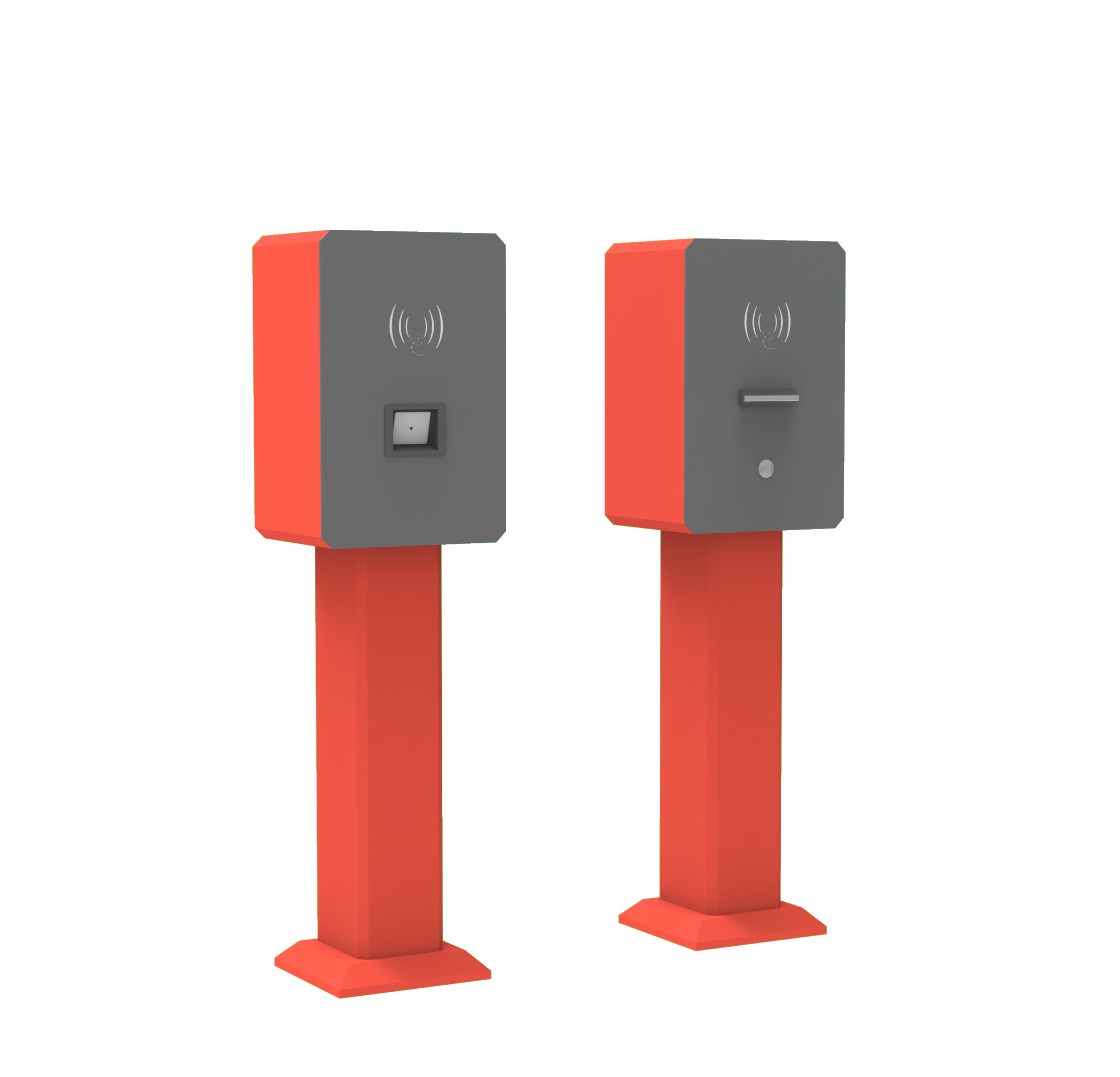

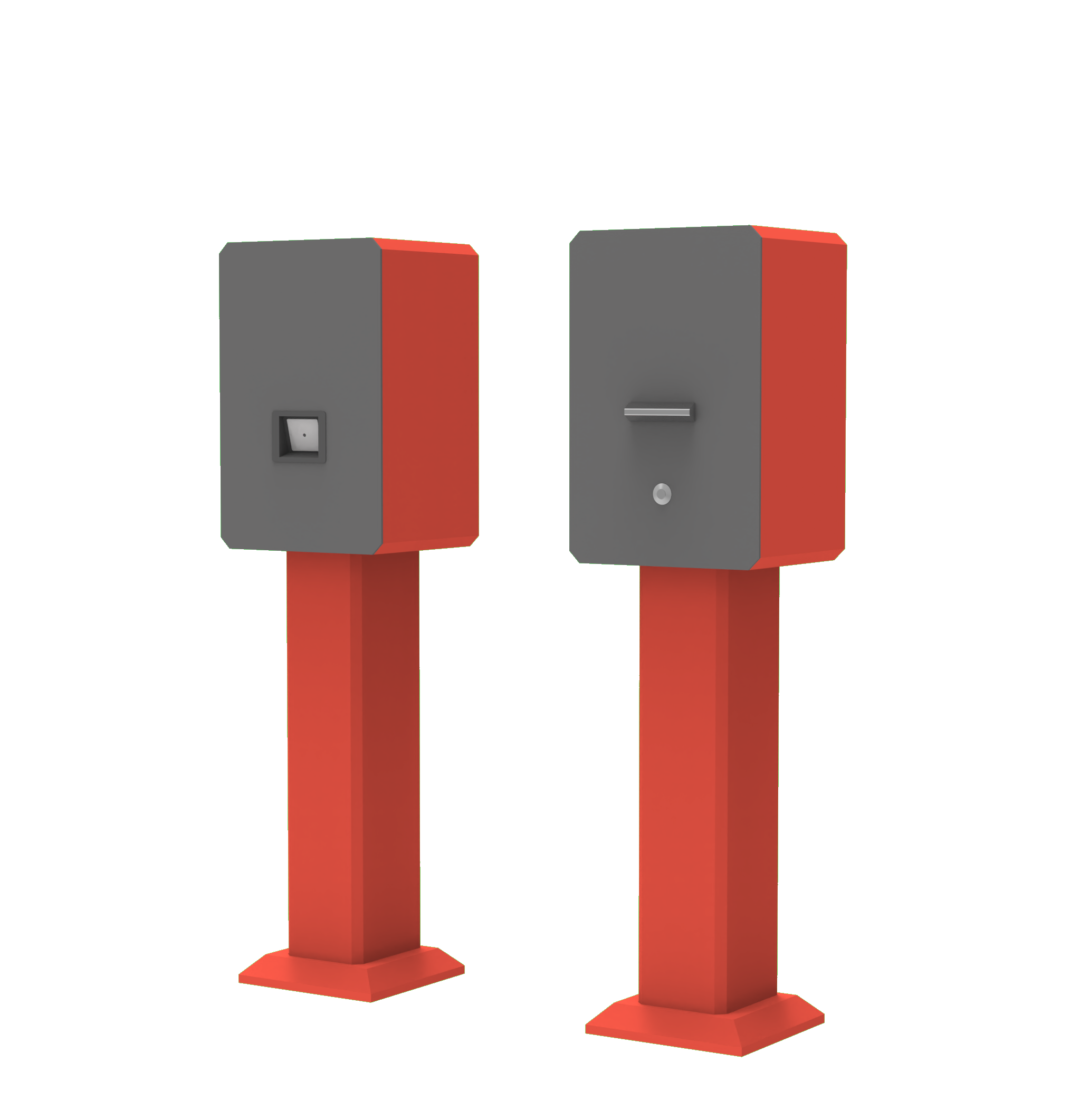

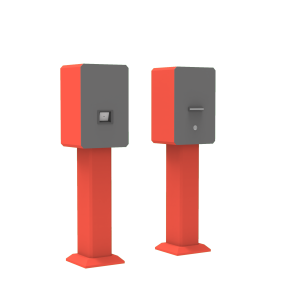

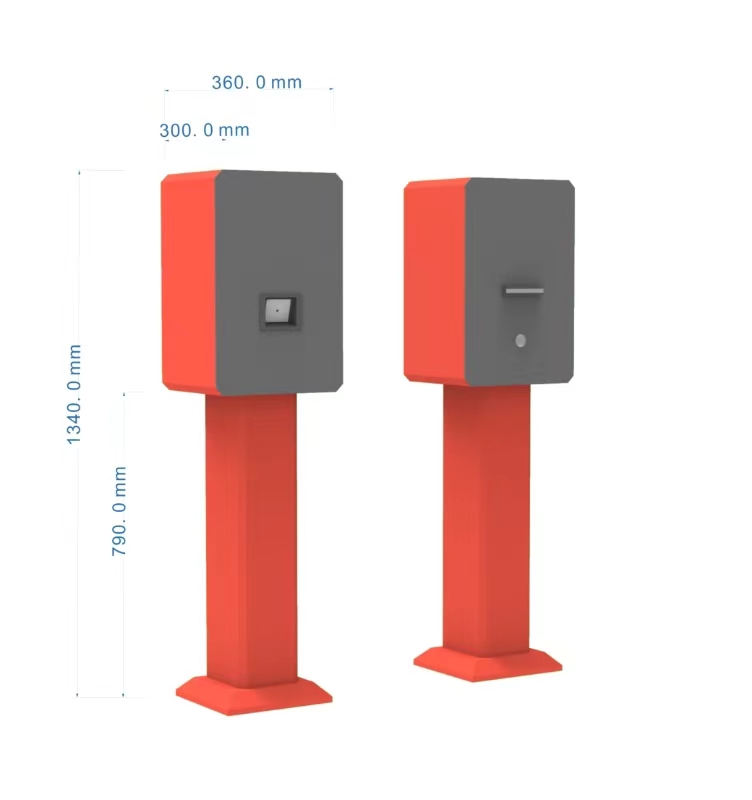

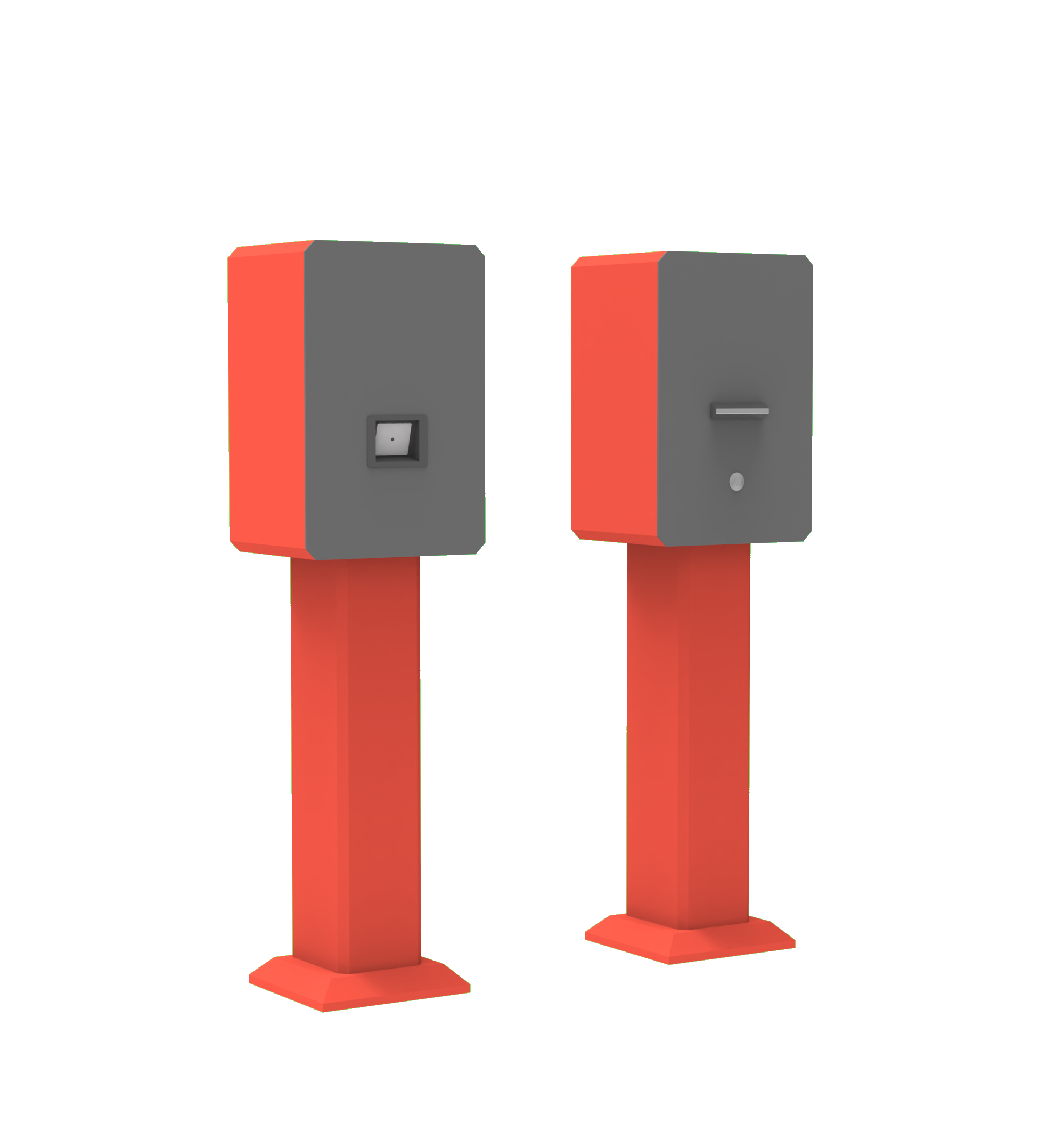

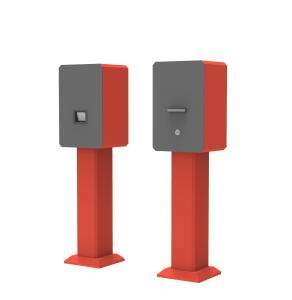

Ticket Parking System – Tiger-TP720E

1. Focus on the core tasks of the paper ticket, eliminate non-essential functions, have a simple structure and a low failure rate.
2. There are no fragile components such as screens, which significantly reduces the initial investment and long-term maintenance costs, making it an economically viable option.
3. It can be easily integrated with various parking management systems and is equipped with an optional QR code scanning head, meeting the requirements for scanning entry.

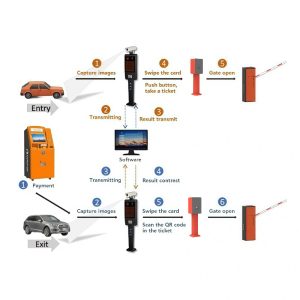

1. Vehicle entry: After the ground sensor coil detect the vehicle entering, it trigger the ticket dispenser. If you are regular users, you need to swipe the card , and then the gate open. If you are temporary users, you need to click the button on the ticket dispenser to get a ticket, and then the gate open.
2. Parking payment: Before the vehicle exit, it need to pay the parking fee at the central payment or manual payment office.
3. Vehicle exit: If you are regular user, you need to swipe your card.If you are temporary user, you need to scan the QR code on the ticket. and the camera capture the license plate image for secondary identification to ensure “one vehicle, one ticket”. After the system verifies that the fee has been paid, the gate will automatically open and the vehicle will exit.

1.This ticket box doesn’t have a screen. How can I operate it and view the information?

This ticket box is extremely simplified in design. You just need to press the “Ticket Retrieval” button, and the device will spit out a QR code paper ticket. There is no need for screen operation.

2.What if the paper ticket doesn’t come out when retrieving the card?

Please wait for a moment. The device might be processing. If the problem persists, please press the ticket retrieval button again to try. If there is still no response, please use the “Help” intercom button or the call button on the ticket box to directly contact the parking lot administrator for handling.

3.Do I need to return the ticket to this ticket box when exiting?

No. When entering, you need to drive to the exit booth or the dedicated toll area, hand over the ticket you took during entry to the staff for payment, or scan the QR code on the ticket at the exit equipment.

4.Will it be inconvenient to take the ticket if my car is tall?

No. The ticket box’s ticket outlet and button area have been designed based on ergonomics, and the installation height is suitable for most common vehicle models.

5.Will rain affect the operation of the ticket box?

Generally, it won’t. The ticket box has IP54 or higher level dust and water resistance capabilities, which can effectively prevent water from entering and ensure stable operation in bad weather.

6.What should I do if I lose the paper ticket?

Drive to the exit and contact the administrator through the intercom system. The administrator will query your entry record through the system (usually by license plate number recognition), and after verification, you may need to pay the corresponding parking fee.

7.How does this ticket box know my parking time?

Your entry time is recorded in the system background at the moment of ticket retrieval. When exiting, the exit equipment reads the QR code or records it, and can calculate the exact parking duration.

8.Why choose this simple ticket box without a screen?

The main advantage is its high cost-effectiveness and reliability. It meets the basic entry management requirements while significantly reducing the equipment’s procurement cost, power consumption, and failure rate and maintenance costs caused by complex components such as screens, especially suitable for venues with limited budgets and stable traffic.

9.Will equipment failure cause congestion at the entrance?

We have designed multiple safeguards. The equipment is sturdy and durable. In case of a failure, the administrator can immediately use remote control or manual methods to force the gate to open, guide the traffic, and carry out subsequent maintenance to minimize the impact on passage.
