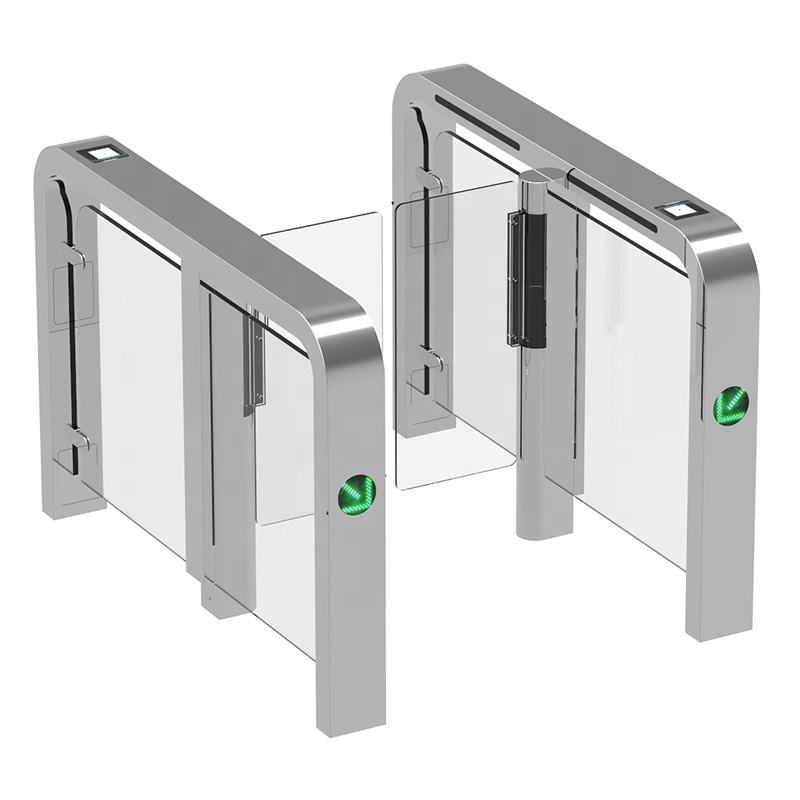

The TGW-SG005 features a modern design, integrating efficient access and intelligent management. Utilizing precision infrared sensing technology, it achieves rapid identification and accurate control of personnel entering and exiting, making it widely applicable in high-traffic areas such as office buildings, industrial parks, and airports. While ensuring security, it significantly improves access efficiency and user experience.
| Product Model | TGW-SG005 |
| Material Of Construction | SS-304 |
| Dimension | 1500mm (L) X 200mm (W) X 1020mm (H) (customizable) |
| Drive | DC Brushless / Servo Motor |
| Net Weight | 50Kgs. |
| Wing Width | Std. Lane 300mm; Wide Lane 420mm |
| Passage Width | Std. Lane 600mm; Wide Lane 900mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Card Reader Provision | 2 Nos. (Entry 1 & Exit 1) |
| Alarm | Break-in; Tailgating |
| Application | Bi-Directional |
| Hold On Time | 1 Sec to 60 Secs Adjustable |
| Relative Humidity | ≤90% RH |
| Product Life Cycle | 5 Mil. Operations (1 Operation = Open & Close) |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 30-40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |

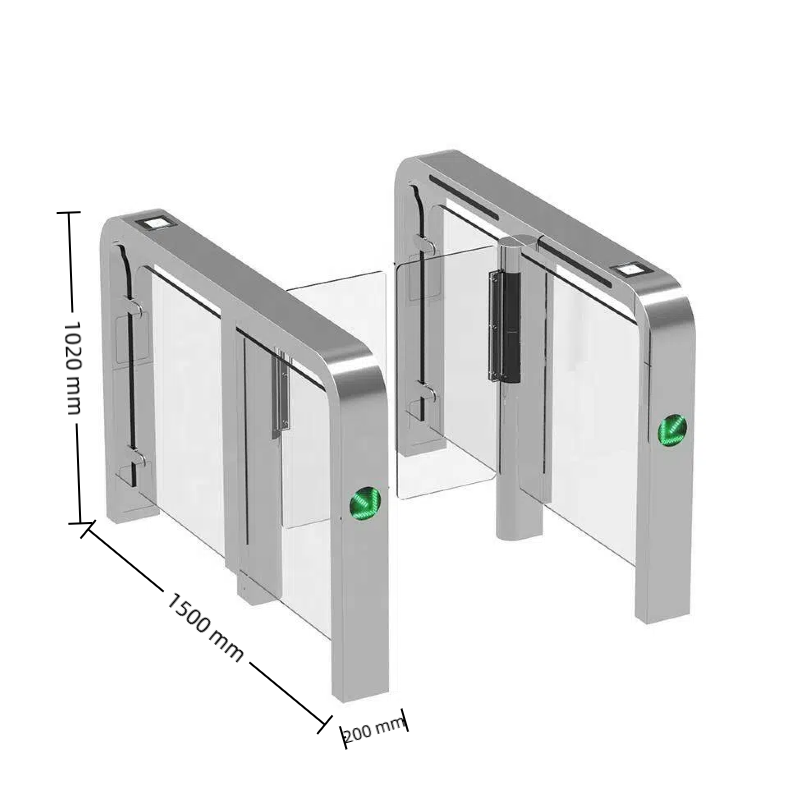

1. What is the size and weight of this speed gate?
Our standard speed gate size is 1500mm (length) x 200mm (width) x 1020mm (height) and weighs about 80kg. Customized size can be made upon request.
2. What materials are used for this speed gate?
The speed gate is made of high-quality stainless steel 304, which is durable and weather-resistant. The door panel is made of acrylic, and supports customizing logos on the door panel.
3. Is this speed gate suitable for outdoor use?
Yes, our speed gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.

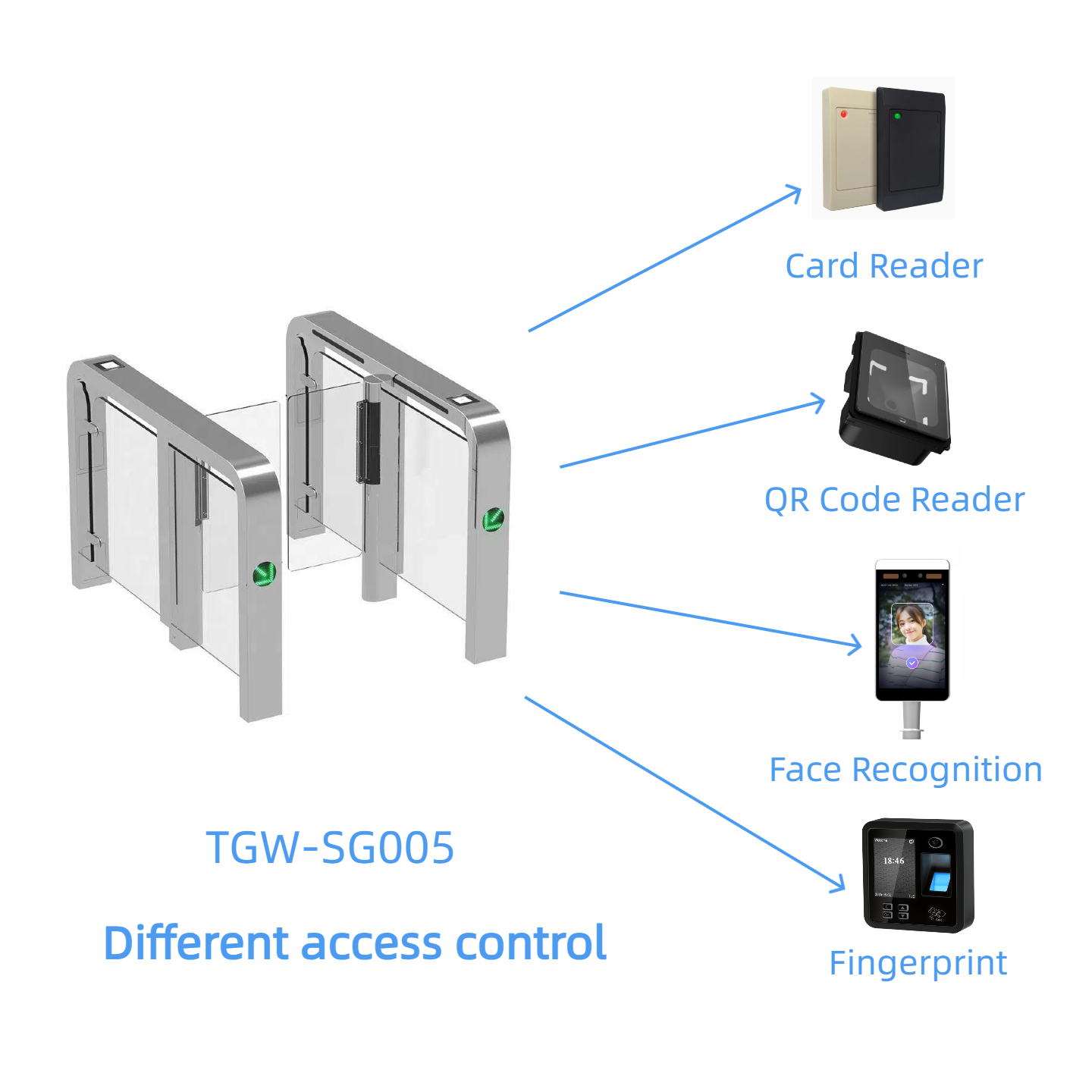

4. How does this speed gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this speed gate support two-way access?
Yes, this speed gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 30-40 people per minute, depending on the configuration.
7. Can the speed gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. How do speed gates respond to emergencies?
They can be connected to the fire protection system and automatically open upon receiving an alarm signal, forming a barrier-free passage.
9. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
10. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
