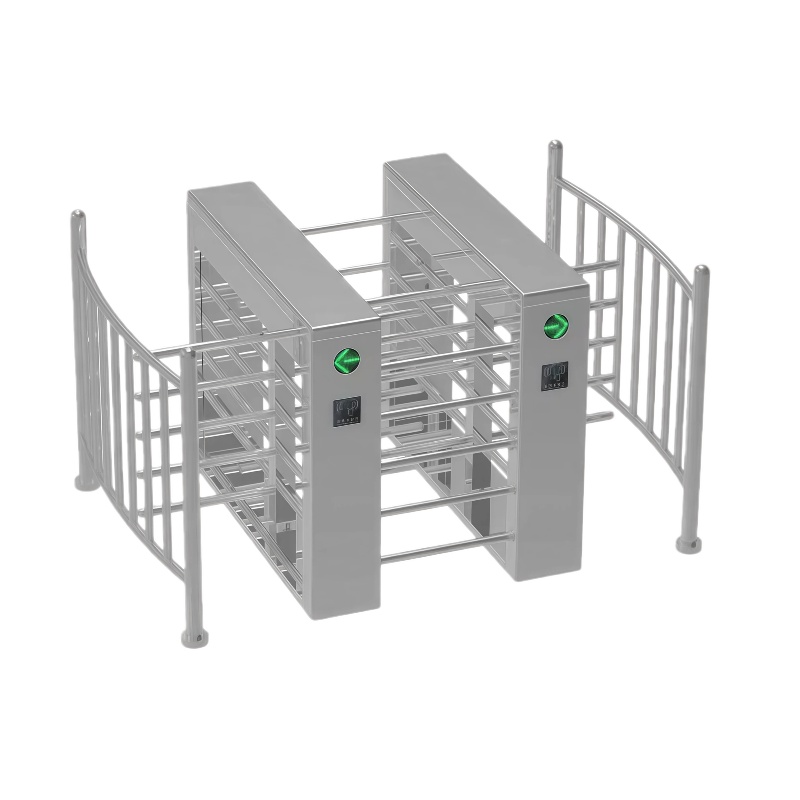

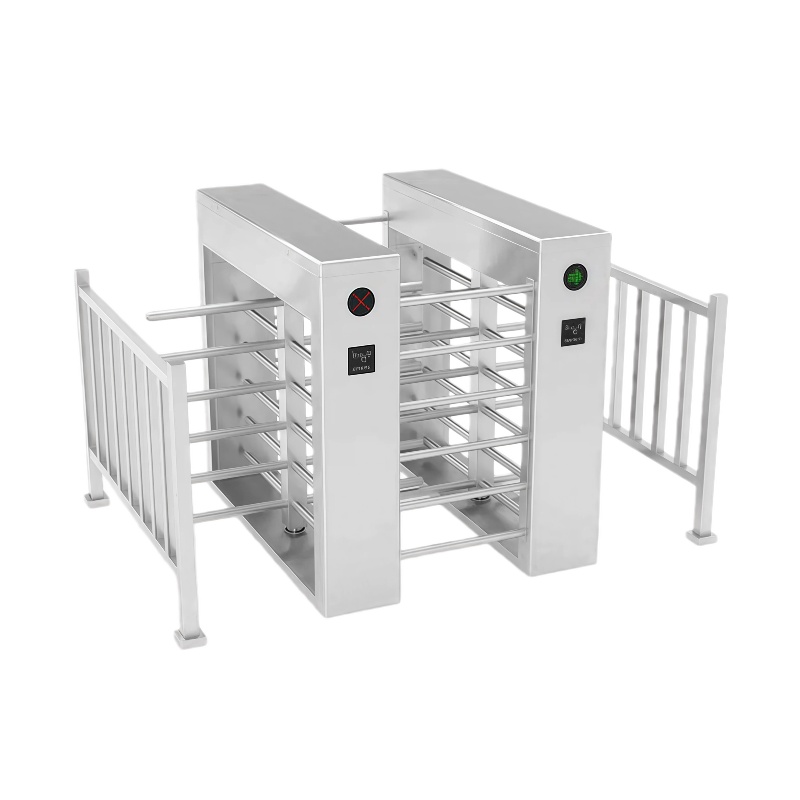

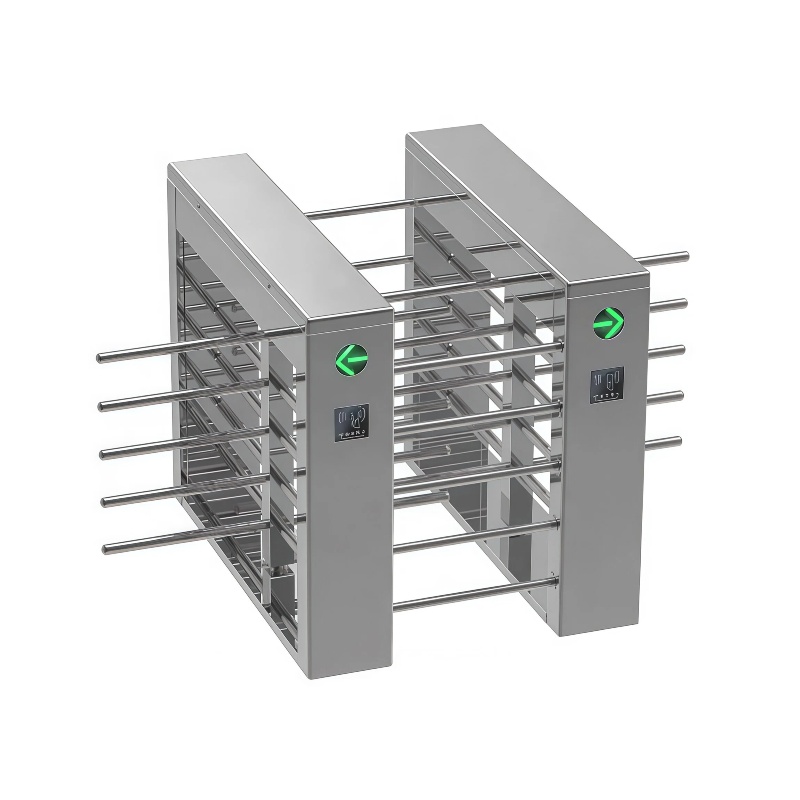

Half Height Turnstile – TGW-HH001D

1. The double-door design allows for flexible configuration as either a two-way or one-way passage, ensuring high traffic efficiency and effectively preventing congestion.
2. The semi-high enclosure effectively blocks traffic while maintaining visual transparency, combining security and guidance without creating a sense of oppression.

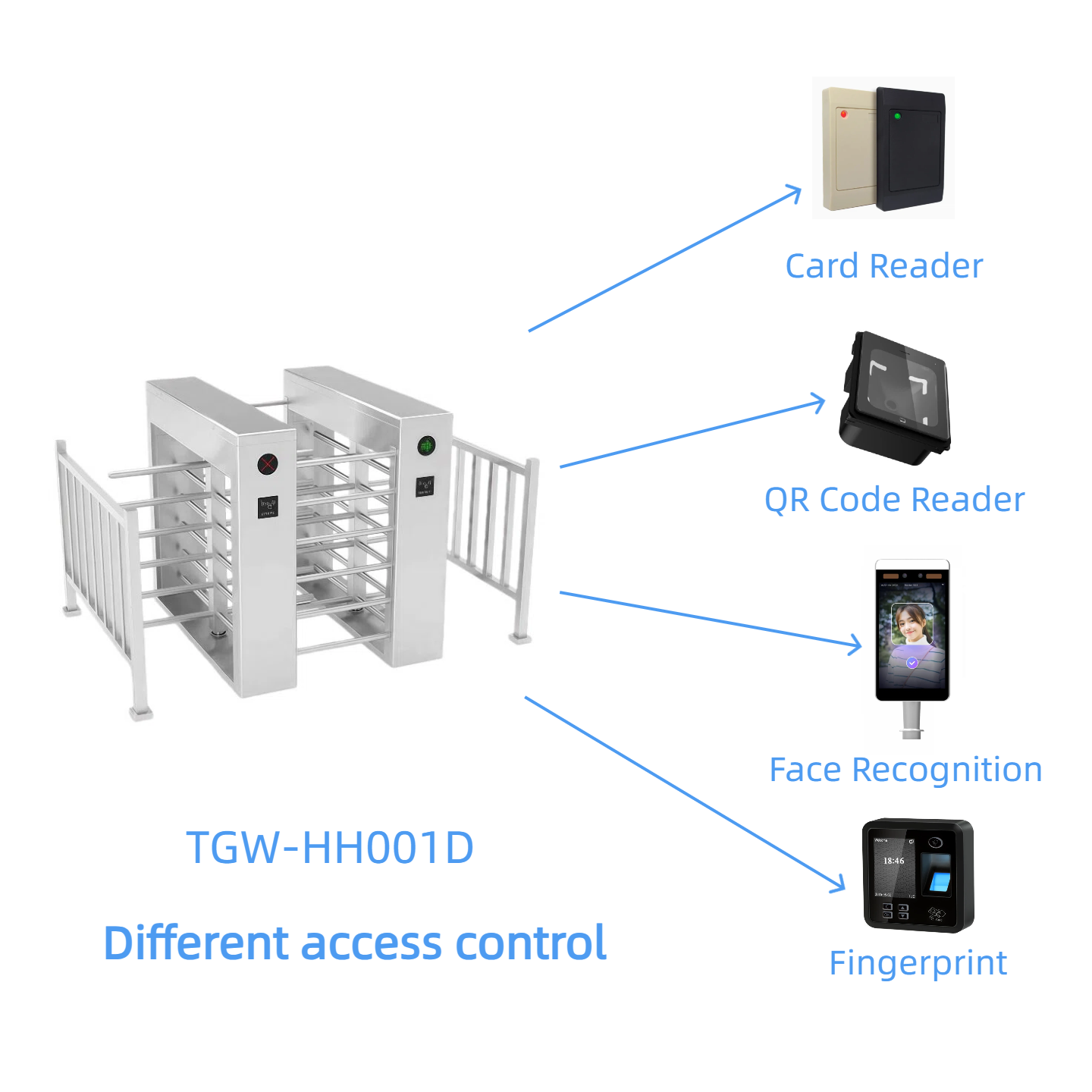

3. It can easily integrate QR code scanners, facial recognition terminals, card readers, etc., meeting various intelligent access control and attendance needs.

1. RFID Card
2. Face Recognition
3. Fingerprint Authentication
4. QR Code/Barcode
5. Button

1. What is the size and weight of this half height turnstile gate?

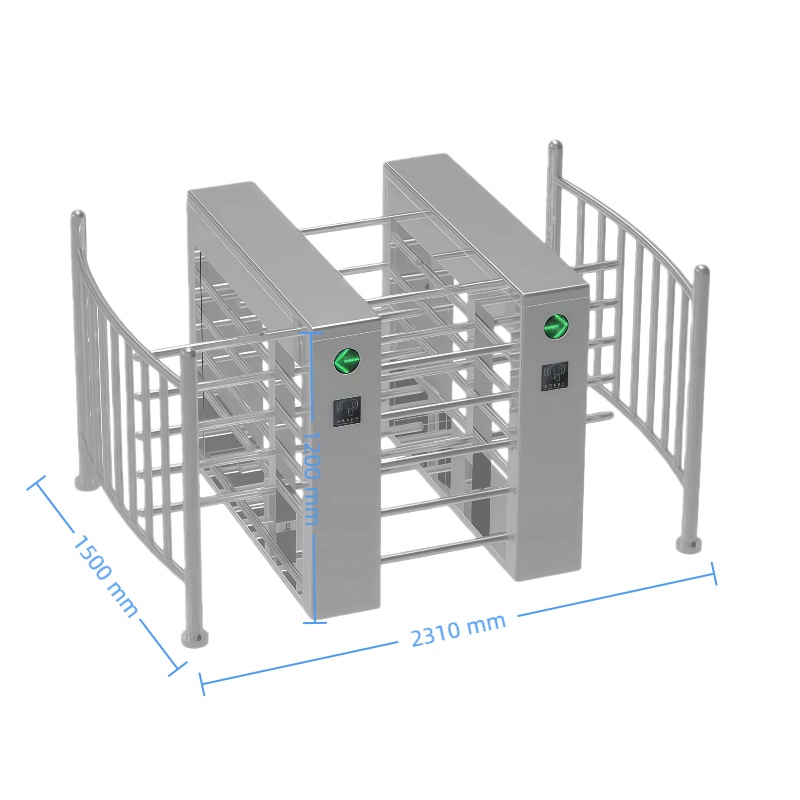

Our standard half height turnstile gate size is 1400mm (length) x 1500mm (width) x 2310mm (height) and weighs about 160kg. Customized size can be made upon request.

2. What materials are used for this half height turnstile gate?

The half height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.

The TGW-HH001D is an intelligent access control device that integrates high security and efficient passage. It features two symmetrically designed gates with precise logic judgment, enabling controlled passage in both directions or one direction. It is widely used in office buildings, libraries, subway stations, and other locations requiring efficient crowd management and guidance, optimizing the passage experience while ensuring safety.

3. Is this half height turnstile gate suitable for outdoor use?

Yes, our half height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.

4. How does this half height turnstile gate work?

Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.

5. Can this half height turnstile gate support two-way access?

Yes, this half height turnstile gate can support one-way or two-way access.

6. What is the maximum throughput capacity?

About 40 people per minute, depending on the configuration.

7. Can the half height turnstile gate connect to my existing access control system?

Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.

8. Is professional installation required?

We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.

9. How do I maintain the turnstile?

Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
