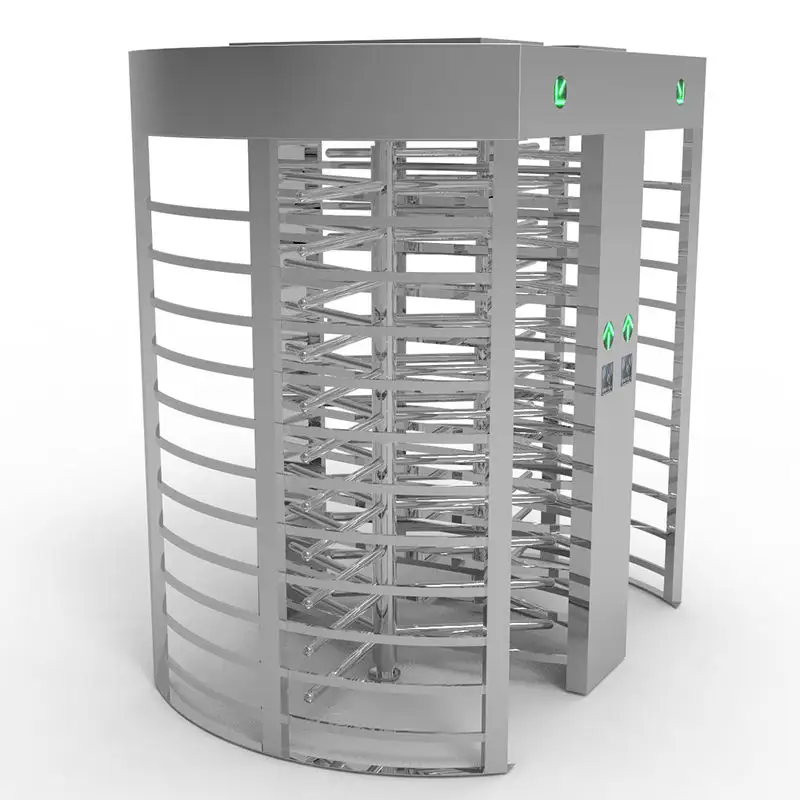

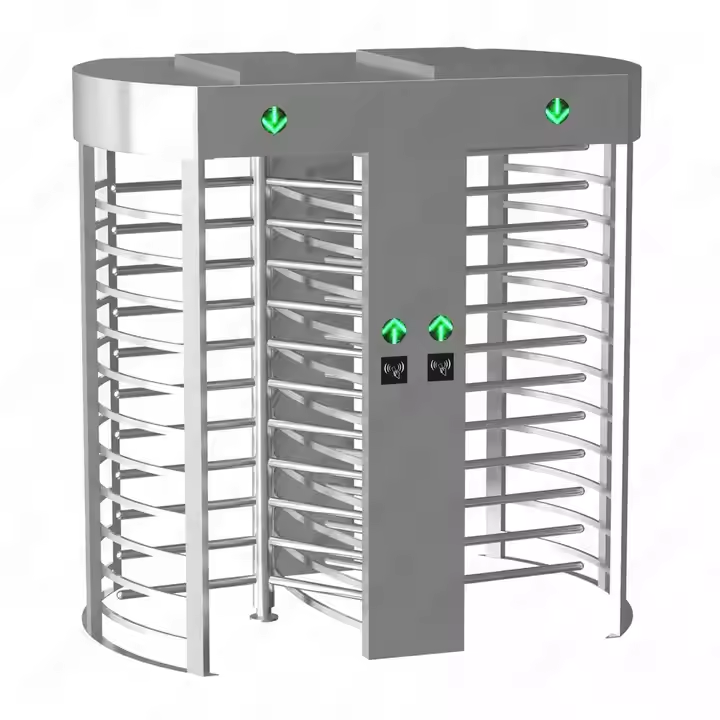

The TGW-FH001D features a three-dimensional barrier design exceeding 2 meters in height, forming an insurmountable physical barrier. Through the alternating opening and closing of two sets of rotating door wings, it achieves absolute single-person passage and controlled two-way flow, providing the highest level of security for core areas. It is an ideal choice for extremely high-security locations such as airports, prisons, and power plants.
| Product Model | TGW-FH001D |
| Material Of Construction | SS-304 |
| Dimension | 1450mm (L) X 2300mm (W) X 2300mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 300Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Double |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 4 Nos. (Entry 2 & Exit 2) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |

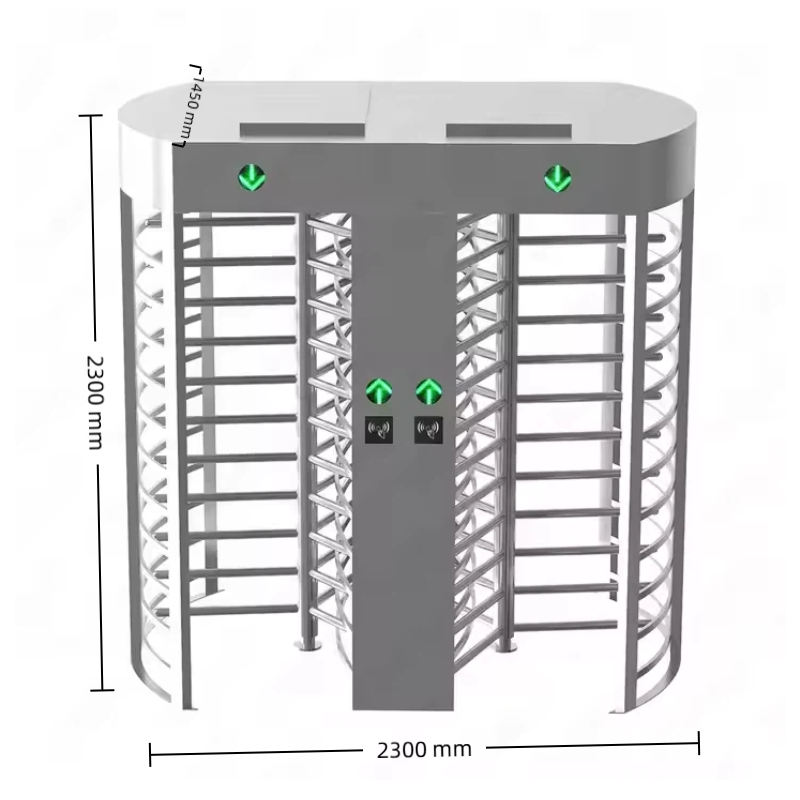

1. What is the size and weight of this full height turnstile gate?
Our standard full height turnstile gate size is 1450mm (length) x 2300mm (width) x 2300mm (height) and weighs about 300kg. Customized size can be made upon request.
2. What materials are used for this full height turnstile gate?
The full height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this full height turnstile gate suitable for outdoor use?
Yes, our full height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this full height turnstile gate work?

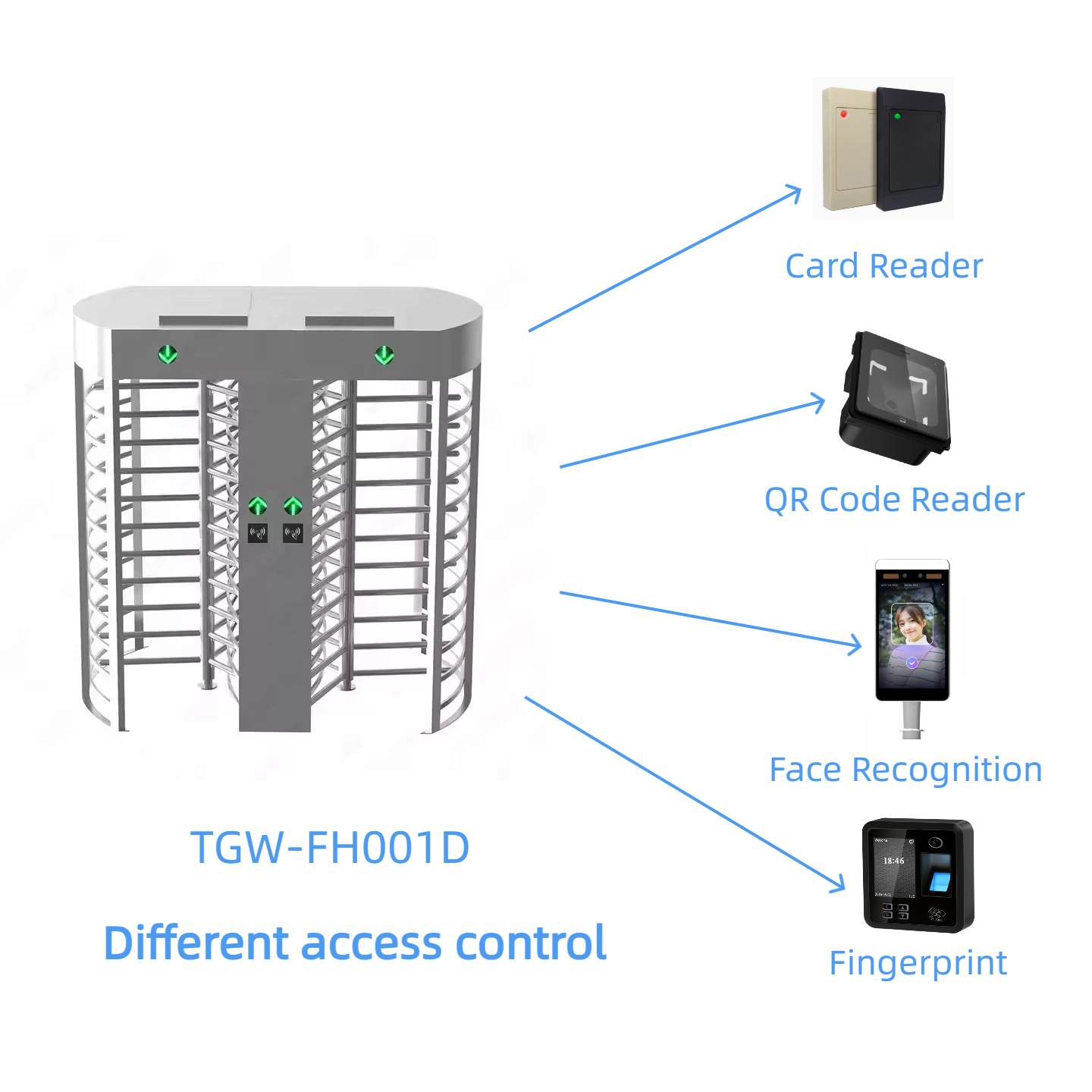

Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this full height turnstile gate support two-way access?
Yes, this full height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.
7. Can the height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
| Product Model | TGW-FH001D |
| Material Of Construction | SS-304 |
| Dimension | 1450mm (L) X 2300mm (W) X 2300mm (H) (customizable) |
| Drive | Solenoid locking |
| Net Weight | 300Kgs. |
| Wing Width | 510mm |
| Passage Width | 550mm |
| Safety & Logic Sensors | 4 Sets |
| Material Thickness | 1.5MM |
| Channel | Double |
| Blades | 3pcs & 120 degree |
| Card Reader Provision | 4 Nos. (Entry 2 & Exit 2) |
| Application | Bi-Directional |
| Relative Humidity | ≤90% RH |
| Power Supply | AC100- 220V ±10% 50/60MHZ |
| Throughput | 40 People per Minute Excluding Card Validation Time |
| Communication Interface | TCP/IP |
| Operating Temperature | -25℃~ +60℃ |
1. What is the size and weight of this full height turnstile gate?
Our standard full height turnstile gate size is 1450mm (length) x 2300mm (width) x 2300mm (height) and weighs about 300kg. Customized size can be made upon request.
2. What materials are used for this full height turnstile gate?
The full height turnstile gate is made of high-quality stainless steel 304, which is durable and weather-resistant.
3. Is this full height turnstile gate suitable for outdoor use?
Yes, our full height turnstile gate is IP65 rated for water and dust resistance, making it ideal for both indoor and outdoor installations.
4. How does this full height turnstile gate work?
Each opening allows one person to pass through. It can be integrated with access control systems (e.g., RFID, fingerprint, face recognition) for automatic access management.
5. Can this full height turnstile gate support two-way access?
Yes, this full height turnstile gate can support one-way or two-way access.
6. What is the maximum throughput capacity?
About 40 people per minute, depending on the configuration.
7. Can the height turnstile gate connect to my existing access control system?
Yes, it supports integration with most third-party systems via Wiegand, RS485, or TCP/IP protocols. Provide your system details, and we’ll confirm compatibility.
8. Is professional installation required?
We provide detailed installation manuals and videos. For complex integration, professional assistance is recommended.
9. How do I maintain the turnstile?
Regular cleaning and lubrication of moving parts are advised. Stainless steel models require minimal maintenance.
