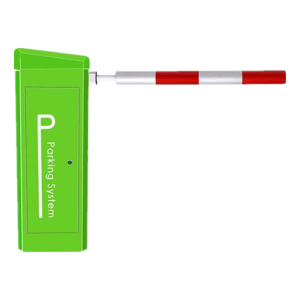

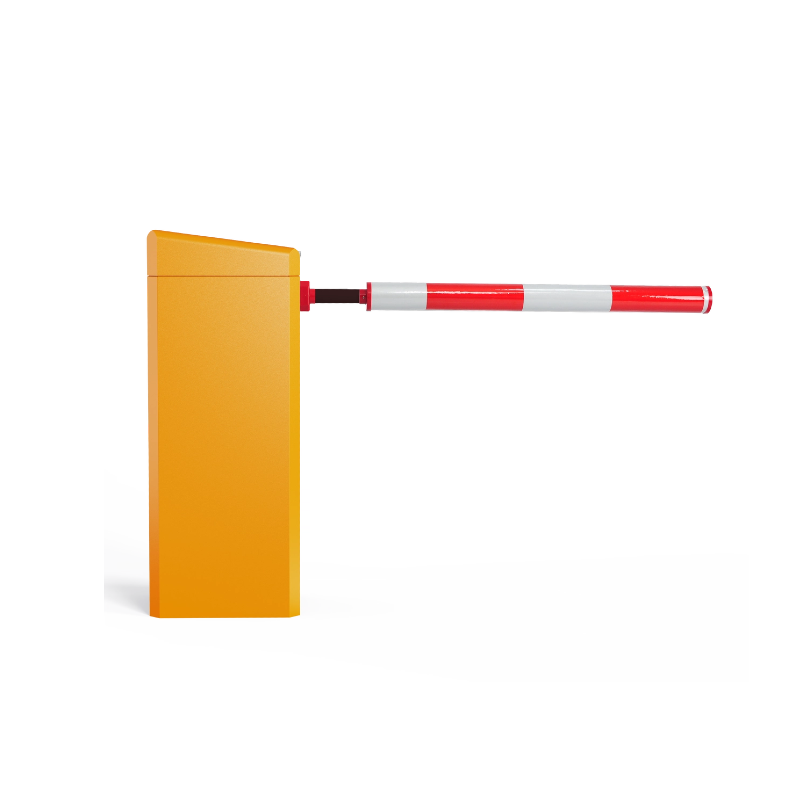

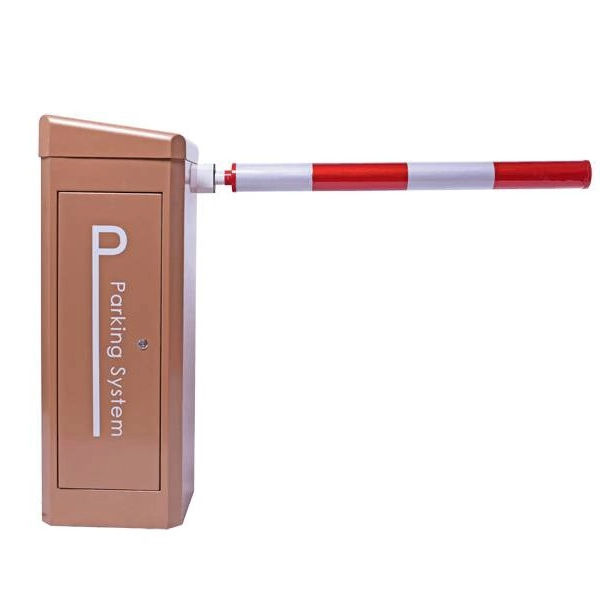

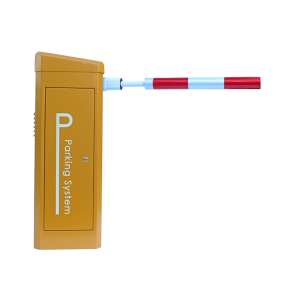

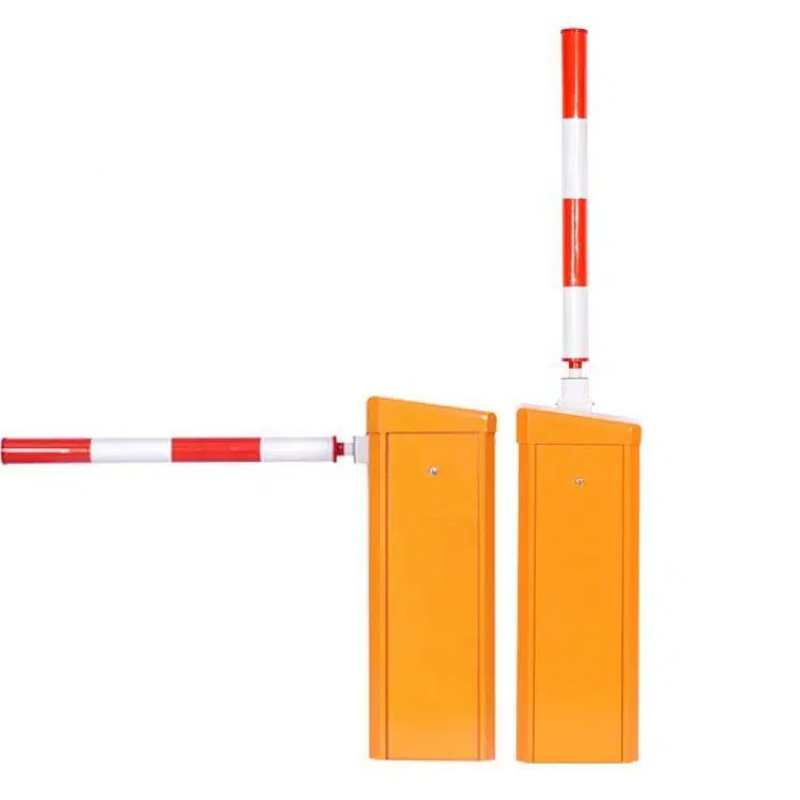

The PARK-301A is a high-end aisle management solution, featuring a high-precision servo motor system at its core and innovative lightweight, high-strength foam rods. The servo motor delivers millisecond-level response and silent operation, while the foam rods ensure strength while significantly reducing the risk of vehicle damage and motor load. It is particularly suitable for high-end venues with stringent requirements for safety, quietness, and operational efficiency.
| Product Model | PARK-301A |
| Product Color | Yellow |

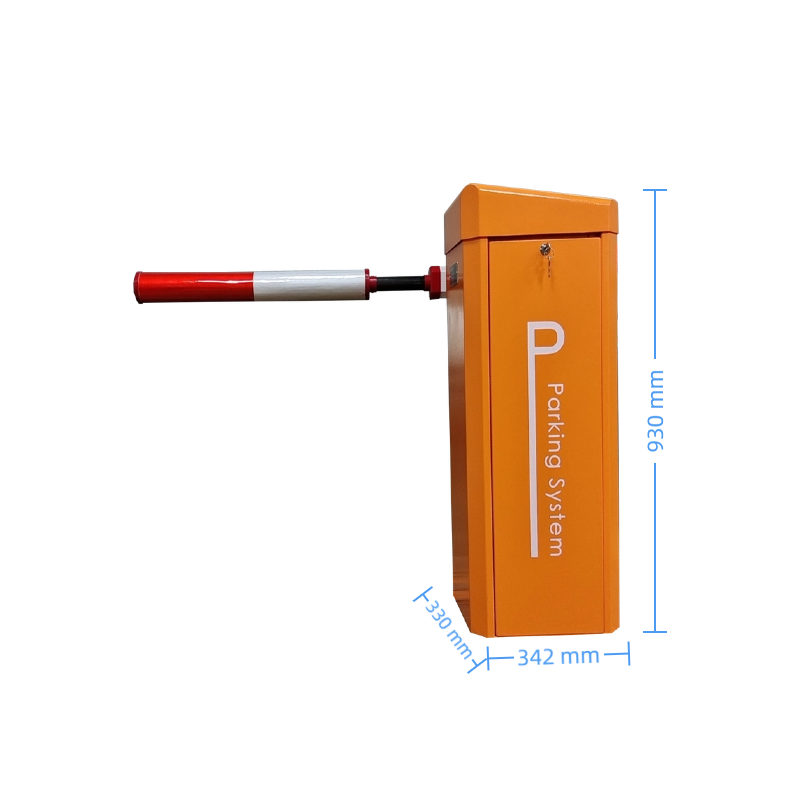

| Size | 930*342*330mm |
| Motor Type | Servo motor |
| Cabinet Material | Iron plate metal 2.0 |
| Arm Material | Foam /Aluminum optional |
| Arm Type | Straight arm |
| Power Supply | AC220V |
| Open/close Speed | 0.6s to 8s(Depending on arm length) |
| Working Temperature | -45℃～85℃ |
| Motor Power | 200W |
| Motor No-load Speed | 3000rpm |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m(open,sunny weather) |
| Protection Grade | IP55 |
| Max Boom Length | 2.5m |
1. Do I need to pre-buried ground sensor coils for installation?
Not necessary, choose according to your needs. We provide radar trigger solutions (no buried wires), which are faster to install.
2. Can the barrier gate work normally in extreme weather?
Motor protection level IP54, stable operation at -45℃~85℃.
3. Can the barrier gate arm length and lifting speed be adjusted?
The maximum arm length supported is 6 meters, and the lifting speed depends on the arm length. The shorter the arm, the faster the speed.
4. How does the system connect to the parking management software?
Provide API/RS485/Ethernet interface, compatible with mainstream systems.
5. Is it suitable for outdoor use?
Yes, this barrier is designed for outdoor use. Made of high-strength steel and painted with an outdoor finish, it’s rust-resistant, rain-resistant, and wind-resistant, making it suitable for all types of weather.
6. How can the barrier control vehicle access?
It supports multiple control methods, including remote control, ground sensor, license plate recognition, and IC/ID card swipe, to meet the needs of different scenarios.
7. Is installation difficult?
It’s easy to install. All you need is a solid, flat concrete foundation. Our product’s well-designed structure and standard accessories significantly shorten installation time.
8. Will the barrier still operate during a power outage?
The standard barrier will not automatically operate during a power outage. However, we strongly recommend that you choose a backup battery so that you can still use the remote control for emergency lifting and lowering during a power outage to ensure the passage is not blocked.
9. Is the barrier noisy?
Not at all. We utilize an optimized mechatronic powertrain, ensuring smooth operation and low noise levels, even at night without disrupting the surrounding environment.

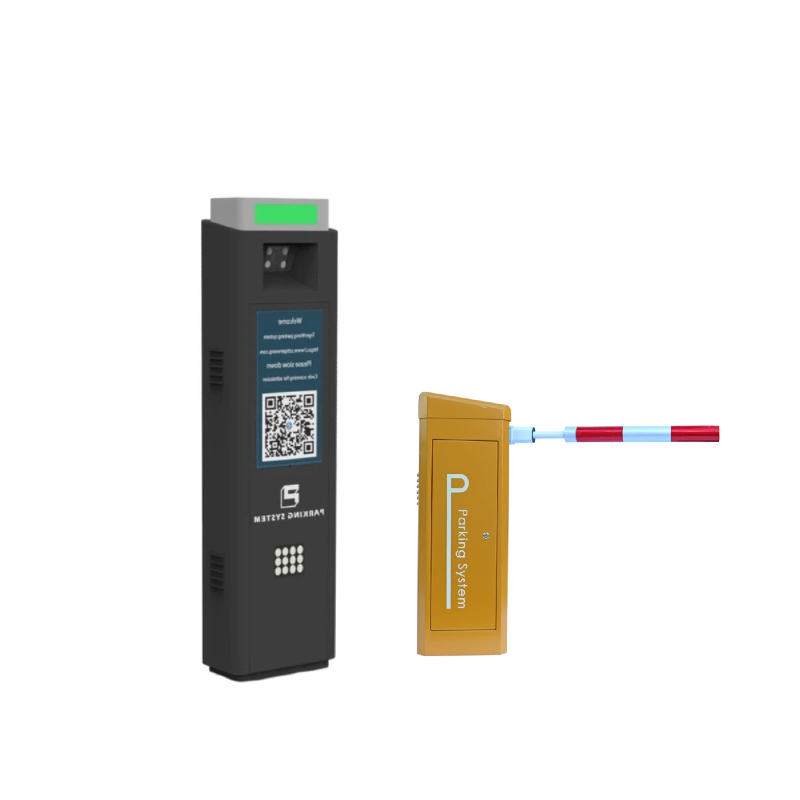

10. Can I integrate my license plate recognition system with another brand?
Yes, our barriers have a standard digital signal interface, a universal industry standard, that allows for seamless integration with most mainstream license plate recognition systems and other management equipment on the market.
| Product Model | PARK-301A |
| Product Color | Yellow |
| Size | 930*342*330mm |
| Motor Type | Servo motor |
| Cabinet Material | Iron plate metal 2.0 |
| Arm Material | Foam /Aluminum optional |
| Arm Type | Straight arm |
| Power Supply | AC220V |
| Open/close Speed | 0.6s to 8s(Depending on arm length) |
| Working Temperature | -45℃～85℃ |
| Motor Power | 200W |
| Motor No-load Speed | 3000rpm |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m(open,sunny weather) |
| Protection Grade | IP55 |
| Max Boom Length | 2.5m |
1. Do I need to pre-buried ground sensor coils for installation?
Not necessary, choose according to your needs. We provide radar trigger solutions (no buried wires), which are faster to install.
2. Can the barrier gate work normally in extreme weather?
Motor protection level IP54, stable operation at -45℃~85℃.
3. Can the barrier gate arm length and lifting speed be adjusted?
The maximum arm length supported is 6 meters, and the lifting speed depends on the arm length. The shorter the arm, the faster the speed.
4. How does the system connect to the parking management software?
Provide API/RS485/Ethernet interface, compatible with mainstream systems.
5. Is it suitable for outdoor use?
Yes, this barrier is designed for outdoor use. Made of high-strength steel and painted with an outdoor finish, it’s rust-resistant, rain-resistant, and wind-resistant, making it suitable for all types of weather.
6. How can the barrier control vehicle access?
It supports multiple control methods, including remote control, ground sensor, license plate recognition, and IC/ID card swipe, to meet the needs of different scenarios.
7. Is installation difficult?
It’s easy to install. All you need is a solid, flat concrete foundation. Our product’s well-designed structure and standard accessories significantly shorten installation time.
8. Will the barrier still operate during a power outage?
The standard barrier will not automatically operate during a power outage. However, we strongly recommend that you choose a backup battery so that you can still use the remote control for emergency lifting and lowering during a power outage to ensure the passage is not blocked.
9. Is the barrier noisy?
Not at all. We utilize an optimized mechatronic powertrain, ensuring smooth operation and low noise levels, even at night without disrupting the surrounding environment.
10. Can I integrate my license plate recognition system with another brand?
Yes, our barriers have a standard digital signal interface, a universal industry standard, that allows for seamless integration with most mainstream license plate recognition systems and other management equipment on the market.
